120℃/200℃ Electric High Temperature Heat Tracing Self Regulating Heating Cable XBR

self regulating heating cable

120℃/200℃ Electric High Temperature Heat Tracing Self Regulating Heating Cable XBR

XBR self-regulating heating cables provides the most versatility in heat trace designs and applications.

This product has been used for over 100,000 meters in our company’s key partners, PetroChina, CNOOC,Sinopec,China Aerospace,Wanhua Chemical and other global Fortune 500 companies.
  • Brand:

    Huanrui
  • Power Ouput:

    15,30,45,60 (W/M)
  • Max. Maintain Temperature:

    120°C(248℉)
  • Max. Exposure Temperature:

    200°C(392℉)
  • Min. Installation Temperature:

    -60℃
  • Rated Voltage:

    110V-120V/220V-240V
  • Max. Resistance of Braid:

    ≤18.2Ω/km
  • Bus Wire Gauge:

    1.21mm² & 1.37mm²
  • Certifications:

    CE, EAC ex ,IEx e IIC T3 Gb X,Ex tb IIIC T200°C Db X

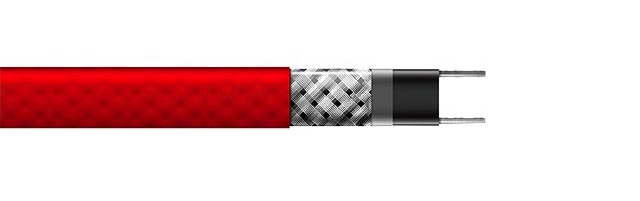

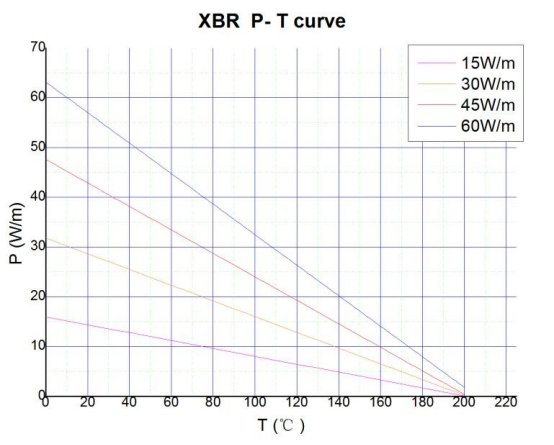

Constructed of a semi-conductive heater matrix extruded between parallel bus wires, a self-regulating cable adjusts its output to independently respond to ambient temperatures all along its length. Asthetemperature increases, the heater’s resistance increases,which lowers the output wattage. Conversely, as the temperature decreases, the resistance decreases and the cable produces more heat. So thermostat is not necessary in some applications. It will never overheat or burnout even when overlapped. The cable can also be cut to any length.As the result, we got an energy-efficient heating cable. With Fluoropolymer material for inner insulation andouter jacket , the heating cable is resistant to watery and inorganic chemicals and protected against abrasion and impacted damage.

XBR,Materia for inner and outer insulation use fluoropolymer.


Advantages of XBR

1. Multiple power designs and wide range.
2. High exposure temperature, reaching 200℃.
3. Special processing technology, very low starting current, low attenuation rate and long service life.
Never overheat or burnout when overlapped. Cut to any length. Easy to install.



Application

XBR series self-regulating heating cables are suitable for defrosting and temperature maintenance of pipes, tanks, valves, flanges and heating requests that requi re high power output. Also suitable for applications in explosion-proof and corrosive environments. The XBR series self-regulating heating cable can withstand the highest exposure temperature up to 200℃ (392℉), and the highest maintain temperature can reach 120℃ (248℉)

Naming scheme

BR - □ -

PB

a

b

c



Designation

Explanation

a

Power,15/30/45/60 W/ft

b

Series number , X

c

Rated voltage , 1=110-120V;2=220-240V


Technical Summary




Heating cable model


Voltage, AC, 60 Hz

Power   at

10℃(50℉), W/m.



Max length, m @10C(50℉)


Max length, m @-20C(-4℉)


Max length, m

@-40C

15XBR

220-240

15

165/189/200

117/152/189

102/130/161

30XBR

220-240

30

85/114/130

69/100/114

62/88/103

45XBR

220-240

45

70/82/90

49/75/82

44/67/73

60XBR

220-240

60

50/64/70

38/58/64

35/53/59

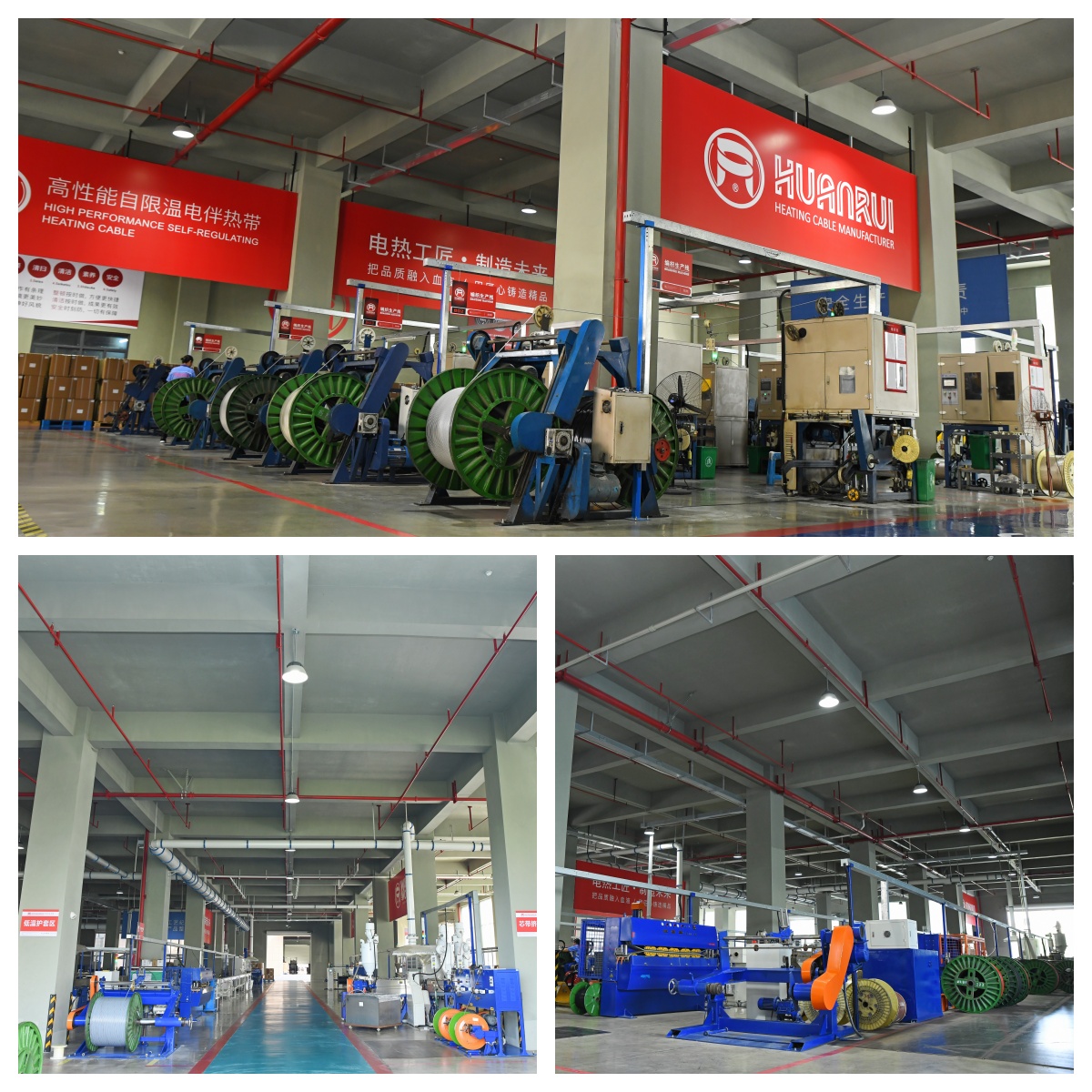

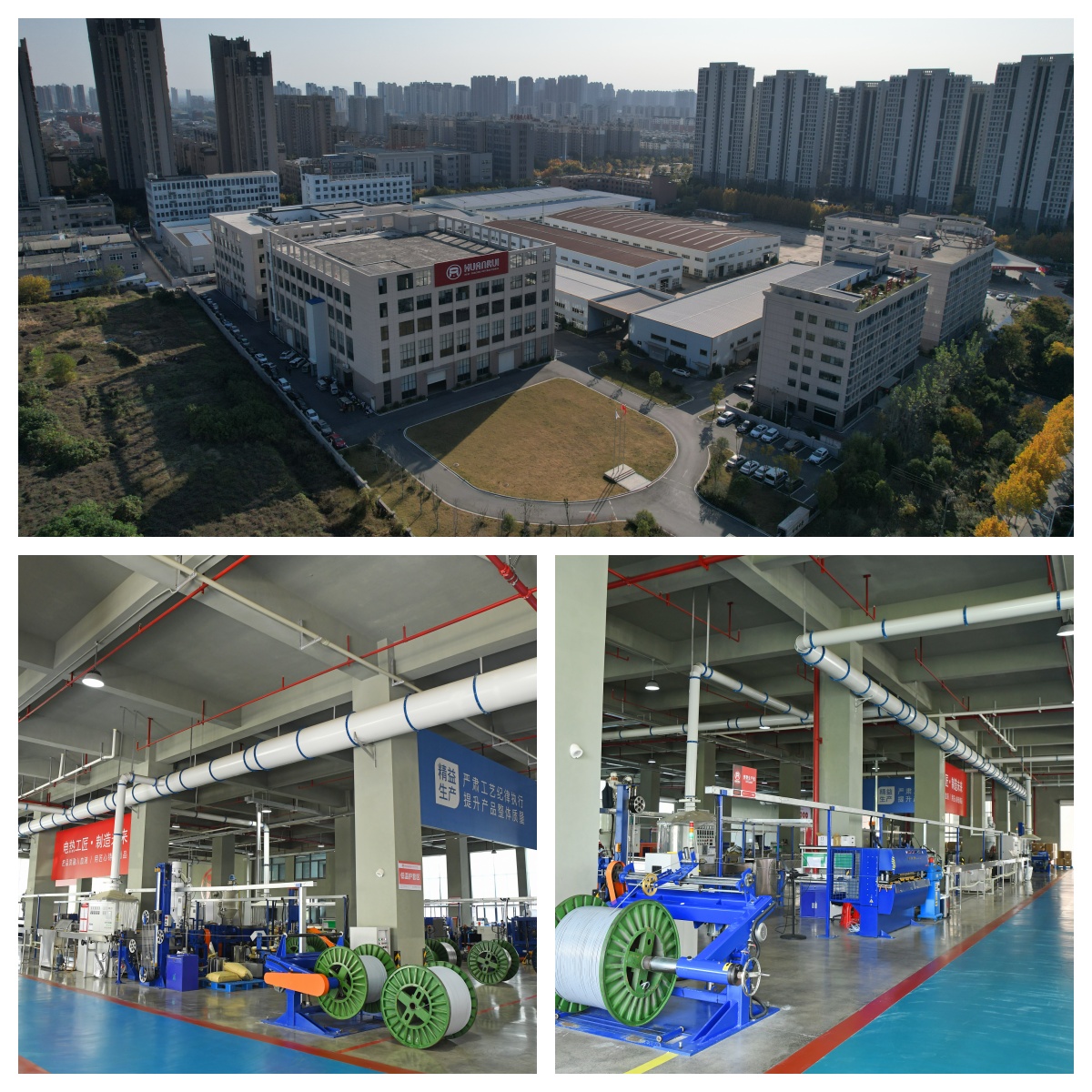

Real-life aerial photography of Anhui Huanrui, with a construction area of over 50,000 square meters.

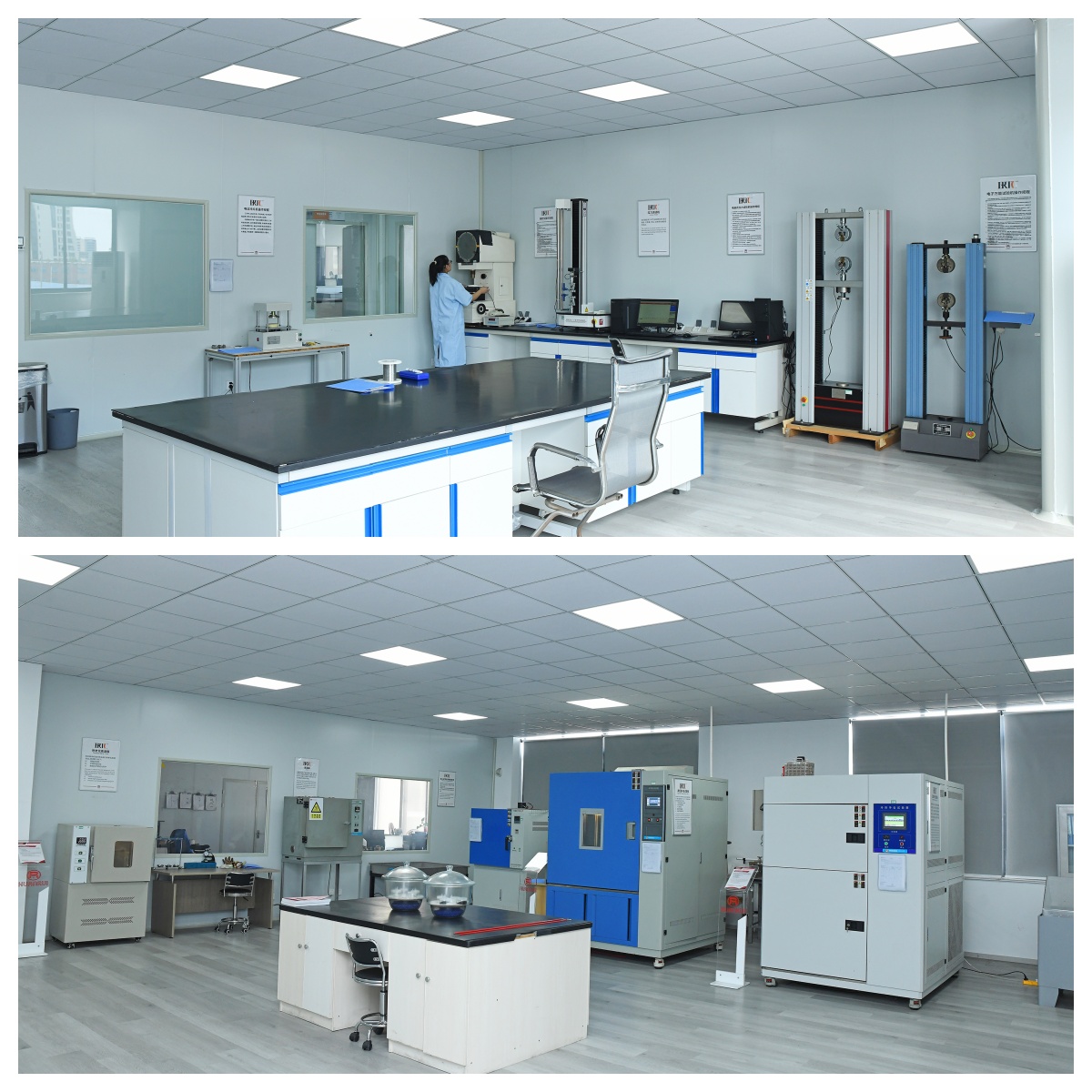

Anhui Huanrui Experimental Testing Center covers an area of over 1,000 square meters and can independently conduct more than 80 tests.

Anhui Huanrui has more than 10 world authoritative certificates, and its electric heating products are exported to more than 50 countries.

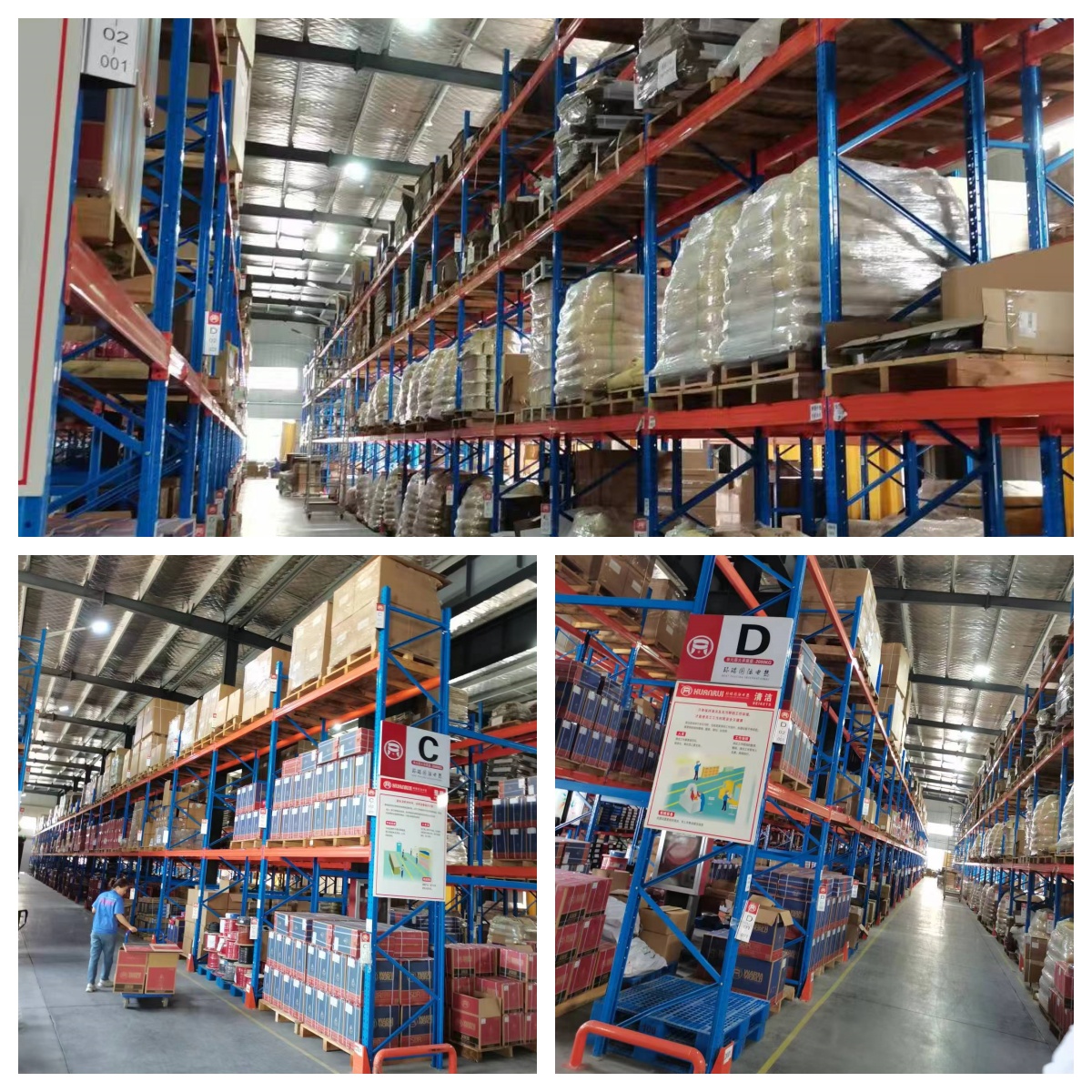

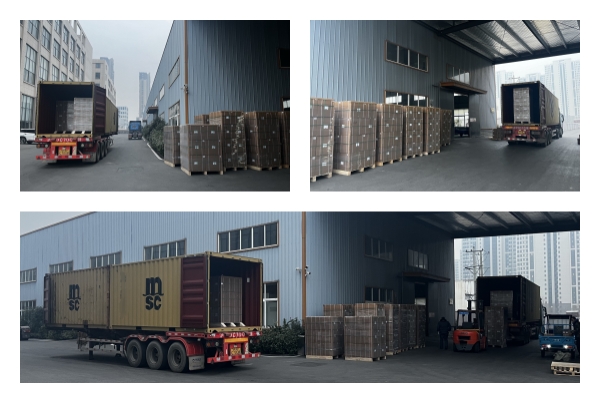

Anhui Huanrui packaging and shipping and over 5,000 square meters of usage area.


Anhui Huanrui has been deeply involved in the electric heating industry for more than 20 years, producing self-regulating & constant wattage heating cables, heating mats, thermostats, explosion-proof junction boxes, distribution boxes and other products throughout the electric heating industry chain; Welcome to contact us, we will provide you with excellent quality, fast delivery, suitable price and high-end service.
