Brand:
HuanruiPower Ouput:
150W/m2,200W/m2Rated Voltage:
230VOuter Jacket:
PVC/FEPOuter dimensions:
3.6mmInsulation optional:
TPEE for T-mat(T)，XLPE for T-mat(X)Insulation material:
FEPCable structure:
Twin conductorShield:
Aluminum-plastic tape or tinned copper wiresConductor:
Solid heating coreConnector:
Out spliceResistance tolerance:
+10%/-5%Certifications:

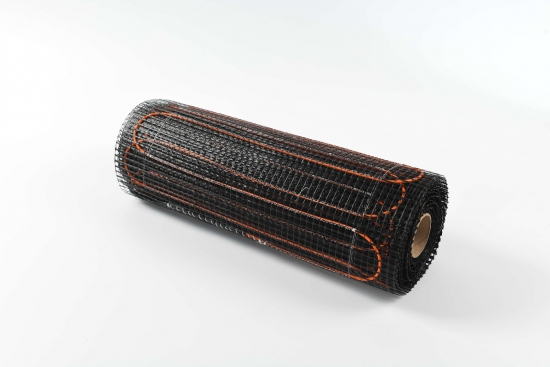

CE EAC TUV CSAThe StickyMat System is ideal for installations within regularly shaped areas, where 0.5m wide mats can be quickly rolled out across the floor in parallel runs. The pressure sensitive adhesive securely binds the mats to the floor, keeping them flat and ensuring the application of tile adhesive is snag free whilst allowing the mats to be easily repositioned as needed.
For floors using a vinyl, carpet, timber or other UFH compatible floor finishes including tiles, the system can be covered with a levelling compound to provide a flat and level floor surface. Alternatively, the Foil Heater System offers utilises a completely dry construction that does not require a levelling compound.
150w/m2 underfloor heating mats are suitable as a primary heating source providing you adequate insulation. These are our most commonly used mats for kitchens, dining rooms, large bathrooms and most other areas with tiled floors.
200w/m2 underfloor heating mats are generally used in areas where high heat loss is a problem, such as conservatories. These mats are only suitable for under-tiled floors, giving a 25% faster warm up time.
Product advantages
1.Durable and strong structure
2.High water-proofness. IP68
3.Long working life
4.25years warranty
5.Small size ,no increase in floor thickness
6.100% screened with Zero EMF
7.100% tested before delivery
8.Free of maintenance
9. High-end automation equipment manufacturing
10.Complete product range
11.Global certification
* Zero EMF
* Self-adhesive mat
* One cold lead 2.5 meter
* Flexible and 100% screened
* Twin conductor heating cable

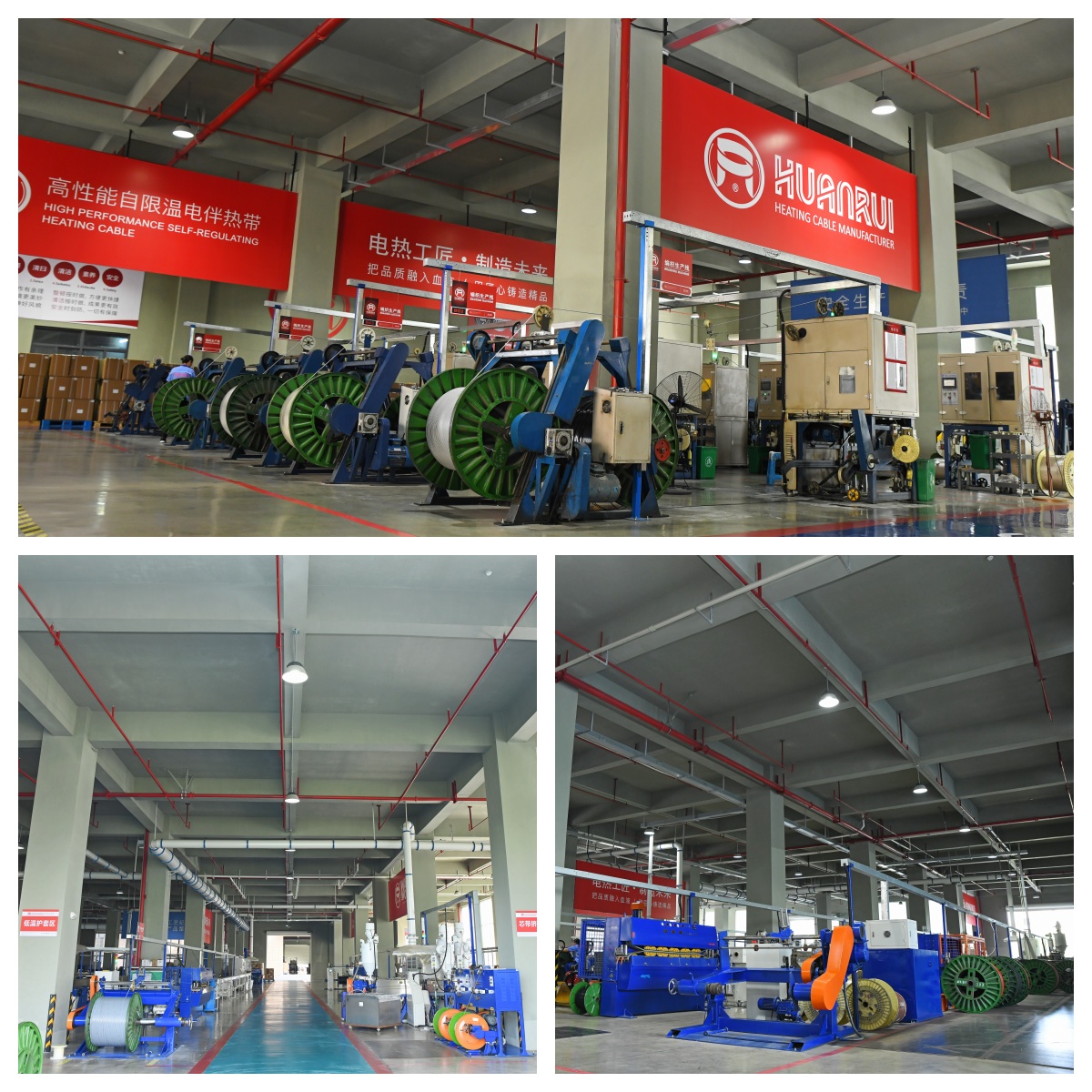

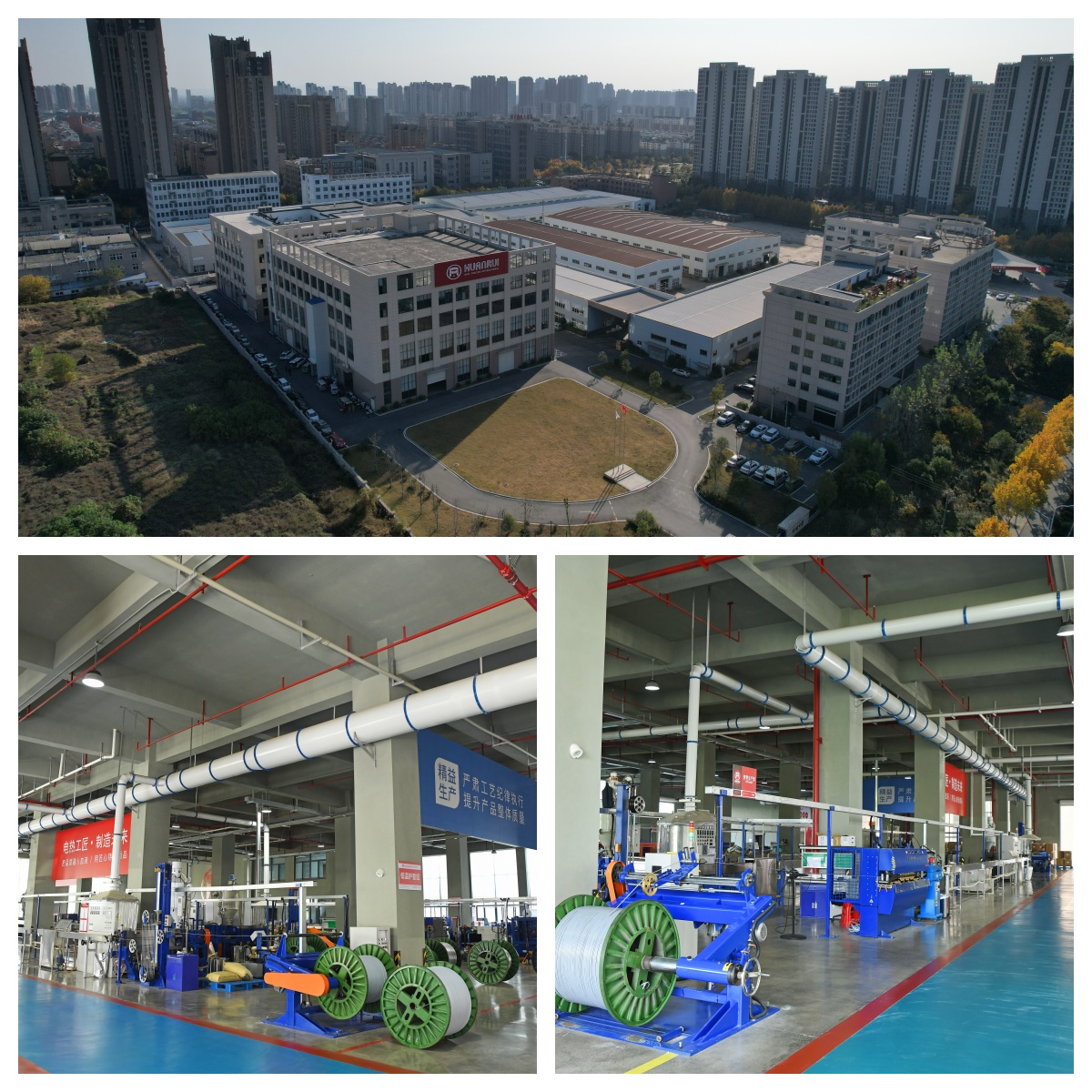

Real-life aerial photography of Anhui Huanrui, with a construction area of over 50,000 square meters.

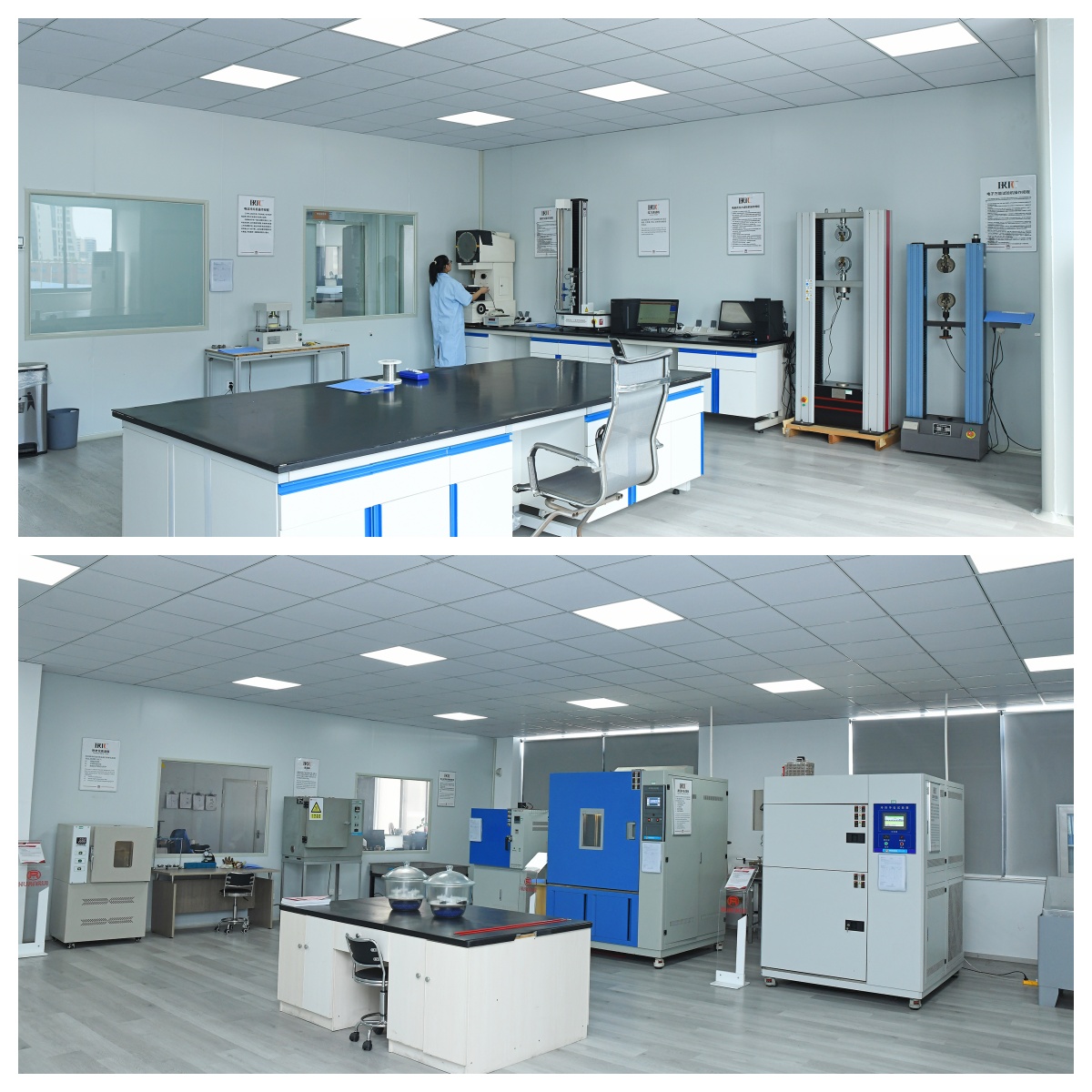

Anhui Huanrui Experimental Testing Center covers an area of over 1,000 square meters and can independently conduct more than 80 tests.
Anhui Huanrui has more than 10 world authoritative certificates, and its electric heating products are exported to more than 50 countries.

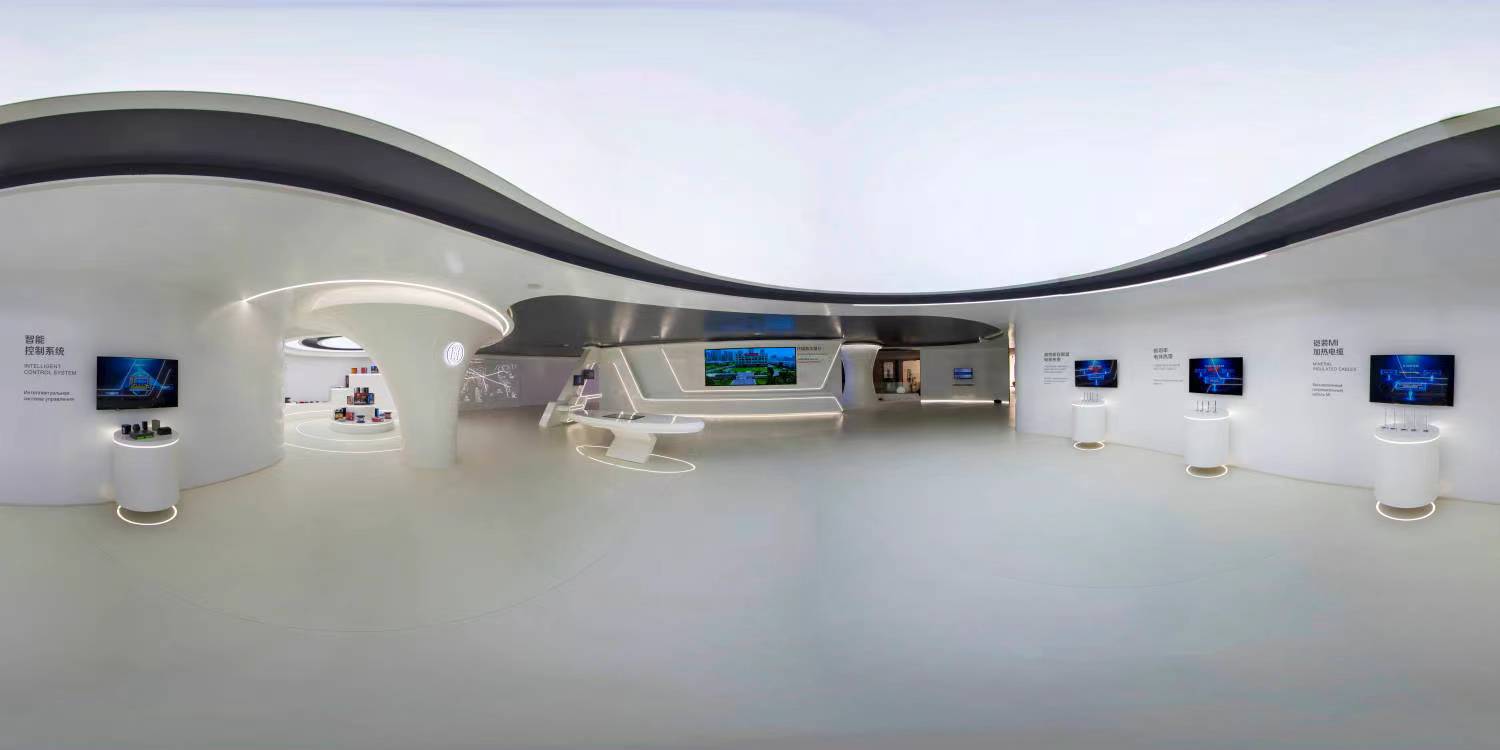

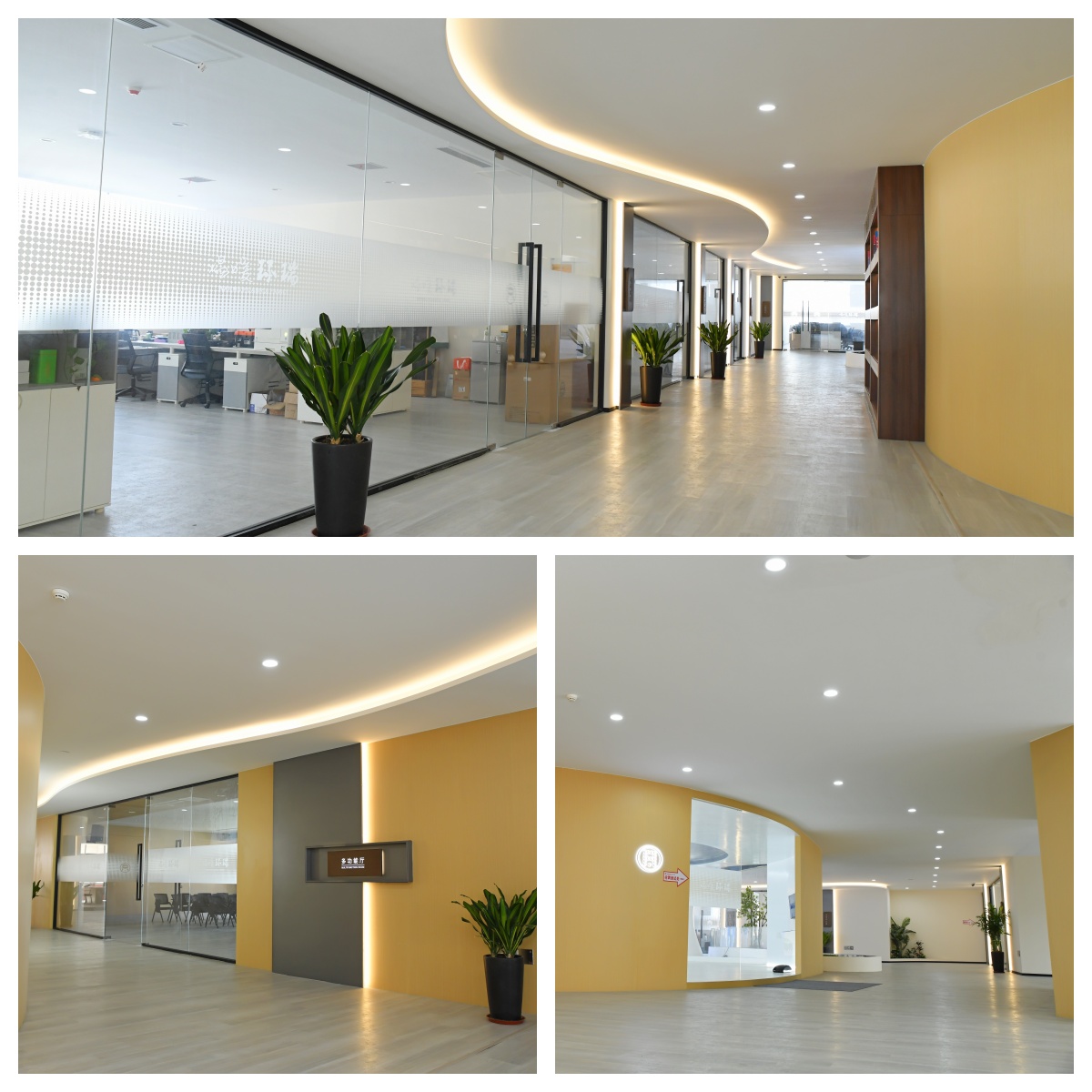

Some office spaces and digital exhibition halls of Anhui Huanrui.

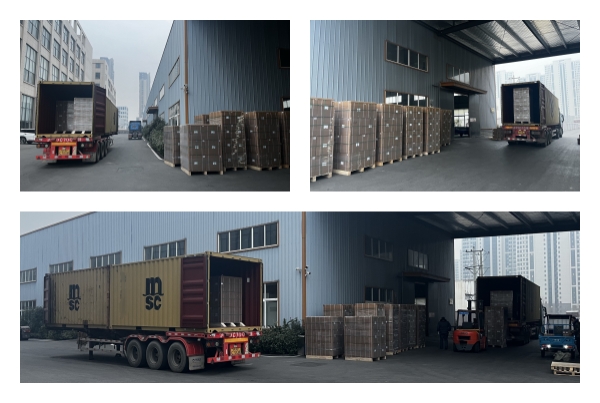

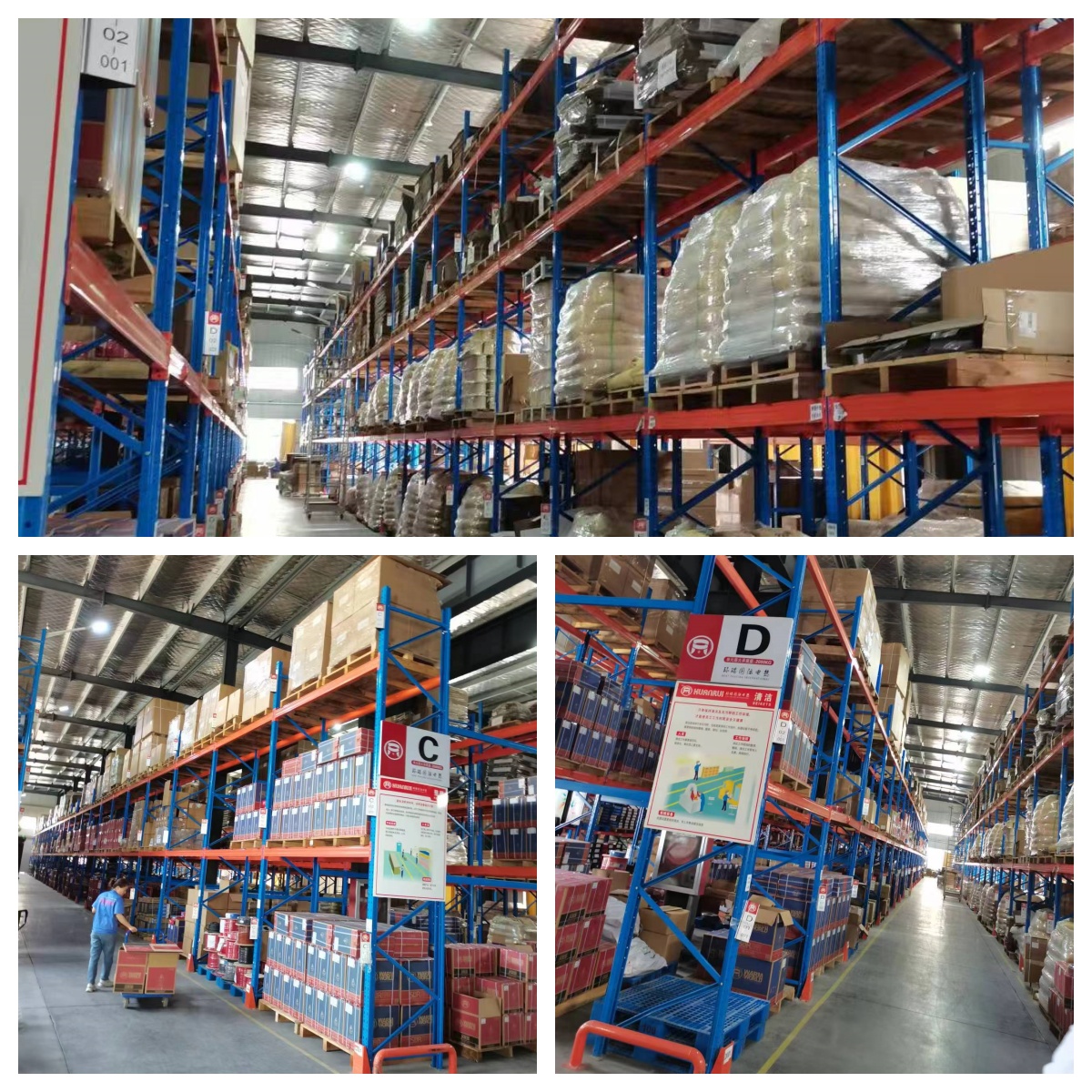

Anhui Huanrui packaging and shipping and over 5,000 square meters of usage area.
Anhui Huanrui participates in world-famous exhibitions every year, such as this AQUA-THERM MOSCOW, with more than 1,000,000 US dollars in transactions on the spot.
Anhui Huanrui has been deeply involved in the electric heating industry for more than 20 years, producing self-regulating & constant wattage heating cables, heating mats, thermostats, explosion-proof junction boxes, distribution boxes and other products throughout the electric heating industry chain; Welcome to contact us, we will provide you with excellent quality, fast delivery, suitable price and high-end service.
T-mat floor warming mat brings warm and comfortable feeling to people in cold season, using a proven technique which is energy-saving, safe and reliable.
