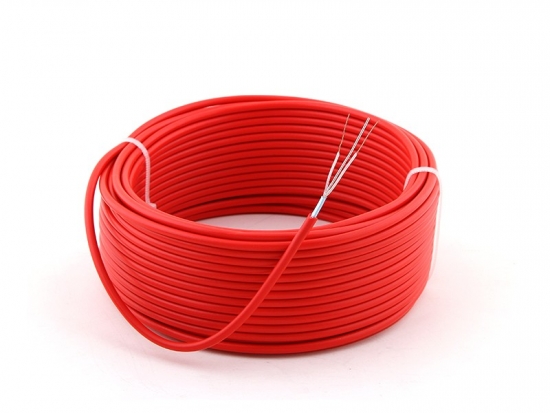

It is a twin conductor heating cable designed for ice and snow melting applications.
Brand:
HuanruiPower Ouput:
28W/MMin. Installation Temperature:
5°CRated Voltage:
230VMax. withstand temperature:
105°COuter Jacket:
PVCOuter dimensions:
7.6mm ~ 8.6mmInsulation material:
XLPECable structure:
Twin conductorShield:
Aluminum-plastic tape / Tinned copperCold lead:
10MConductor:
Solid resistance alloyConnector:
Out splice/lnjection connectorOuter sheath Max temperature:
65°CCertifications:
CE,EAC
Product advantages
1.Durable and strong structure
2.High water-proofness. IP68
3.Long working life
4.25years warranty
5.Small size ,no increase in floor thickness
6.100% screened with Zero EMF
7.100% tested before delivery
8.Free of maintenance
9.Anti-UV
10. High-end automation equipment manufacturing
11.Complete product range
12.Global certification
Applications
• Keeps roof edges, gutters and downspouts ice-free.
• When designing a roof and gutter de-icing system, it is important to know that the HR-DE- FROST SN0W/2R is not intended to completely eliminate snow and ice from the roof. It is simply designed to allow for the free flow of melt water off the roof edge, down the gutter and downspouts, and finally away from the foundation of the structure. The heating cable length should be selected to allow for the cable to serpentine along the roof edge, drop down into and then down the gutter; and then finally exit through the downspout. This will allow for a complete path for the melt water to flow, which will eliminate the costly ice dams from forming on the roof edge.
Features
•Twin conductor cable
•Flexible installation
•Emit zero EMF (electromagnetic fields) Durable structure
•Single point safety connection
•25-years limited warranty
Commodity Introduction

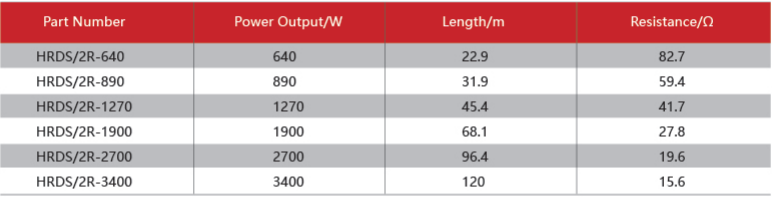

HR-DEFROST SNOW/2R is a twin conductor heating cable with linear power of 28 W/m, and is recommended for outdoor use in ice and snow melting applications. The heating cables are equipped with a 10 m cold lead and a 100% waterproof splice. The HR-DEFROST SNOW/2R Roof & Gutter De-icing cable is designed to withstand the rigors of harsh outdoor use. This system can be installed with confidence that it will operate for years without requiring service. All components are made of the highest quality material and are tested during critical points in the manufacturing process.
Common voltage: 220V/380V Product classification: Electric heat tracing accessories Product certification: 3C certification
