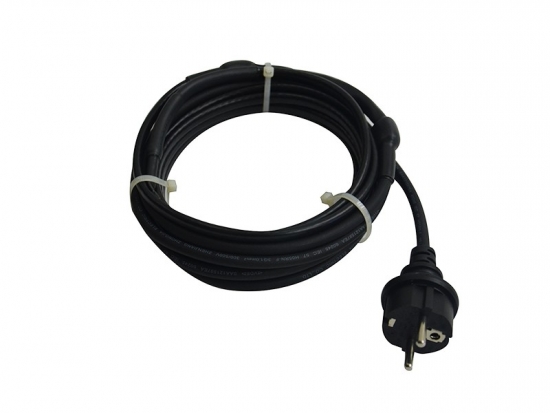

30W/m Heating Trace Cable Kit For Roof And Gutter Warming

HRHC roof and gutter de-icing cables help end costly ice damage by preventing ice dam formation and promoting the free flow of water through gutters and downspouts to ground level.

The HRTCPR is an electrically heated cable designed to prevent snow and ice accumulation around the home or facility, such as driveway, walkways and stairs and so on.

Common voltage: 220V/380V Product classification: Electric heat tracing accessories The explosion-proof distribution box (cabinet) for electric heat tracing is made of aluminum alloy, electrostatic spray plastic, and complies with the explosion-proof regulations of GB3836.2-2000. It is used for the distribution of electric heat tracing products in Class II, Zone 1, and Zone 2 explosion-proof areas. It has overload, single phase, and three-phase two categories, and outputs 1-12 circuits. There are two types of temperature control: fractional display temperature controller and BJW type temperature controller. Anhui huanrui electrical conduit with thermal control and monitoring system will be widely used in the fire pipes, pumps, valves, tank and tank container with heat, anti freezing and anti coagulation, and other heat tracing system. In addition, traffic, petroleum, chemical, electric power, medicine, machinery, food, shipping and other fields, can play a huge role. The real intelligent control can be realized with the current electric heat tracing system.

Electric Underfloor Heating Cable HRVP3.65. With twisted structure, the cable is flexible and easy to install.

  150w or 200w per sqm electric underfloor heating mat.

Product advantages 1.Durable and strong structure 2.High water-proofness.  IP68 3.Long working life 4.25years warranty 5.Small size ,no increase in floor thickness 6.100% screened with Zero EMF 7.100% tested before delivery 8.Free of maintenance Features and applications • Residential indoor floor warming. • Workable in humid places such as bathroom. • Applicable for flooring material like concrete, ceramic tile, marble, wood. • Easy installation for indoor whole and partial warming systems for floor and wall warming. • 2.8mm in diameter; lower height, cost-saving. Part Number Length/ m OutputPower/W Resistance/ Q S-cable15-150 10 150 352.7 S-cable15-225 15 225 235.1 S-cable15-300 20 300 176.3 S-cable15-375 25 375 141.1 S-cable15-450 30 450 117.6 S-cable15-525 35 525 100.8 S-cable15-600 40 600 88.2 S-cable15-750 50 750 70.5 S-cable15-900 60 900 58.8 S-cable15-1050 70 1050 50.4 S-cable15-1200 80 1200 44.1 S-cable15-1350 90 1350 39.2 S-cable15-1500 100 1500 35.3 S-cable15-1800 120 1800 29.4 Part Number Length/ m Power Output/W Resistance/Q S-cable10-100 10 100 529.0 S-cable10-150 15 150 352.7 S-cable10-200 20 200 264.5 S-cable10-250 25 250 211.6 S-cable10-300 30 300 176.3 S-cable10-350 35 350 151.1 S-cable10-400 40 400 132.3 S-cable10-450 45 450 117.6 S-cable10-500 50 500 105.8 S-cable10-600 60 600 88.2 S-cable10-700 70 700 75.6 S-cable10-800 80 800 66.1 S-cable10-900 90 900 58.8 S-cable10-1000 100 1000 52.9 S-cable10-1200 120 1200 44.1

RSR self-regulating heating cables provide the most versatility in heat trace designs and applications.

F-mat underfloor heating mats consist of a twin conductor heating cable with fluoropolymer insulation and embed in a reinforced aluminum foil mat. The mat total thickness is ultra-thin, decreasing the floor height and increasing the comfort level.
