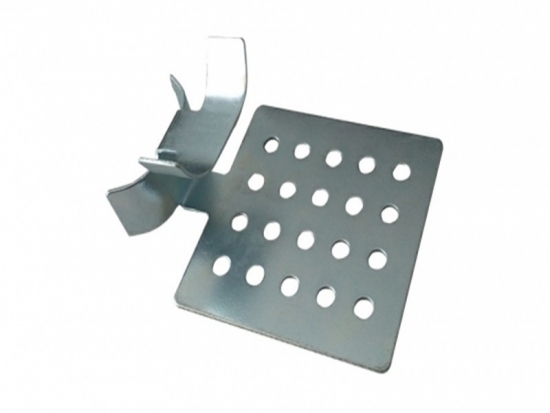

Easy Heat De-Icing Cable Clips For Roof and Gutter

  150w or 200w per sqm electric underfloor heating mat.

Product Description：Floor Heating membrane UM505 Material：polyethylene(PE)film top; polypropylene (PP) nonwoven bottom Roll Size：1mx20m,1mx10m,1mx5m Weight：1000g/sqm Thickness：5.6mm Film thick:0.45mm Wire cable diameter：3.6-4.2mm Installation Temperature：-10℃to 40℃, but limited by tile adhesive specification Storage Temperature：Max. 45℃ Melting：160℃ Steam Resistance：160m Equivalent air layer Air gap volume：2.8 litre/m2 Filling volume of the studs：2.3 litre/m2 Distance of the studs：4.0 mm Crack bridging：0.32mm Tensile Strength：73N/cm Waterpoof：yes Packing：wrapped in plastic film Color：Red, Orange, Yellow, Blue etc Estimation of power may achieve from different cable distribution: @64mm spacing 214W/m2 @96mm spacing 142W/m2 @128mm spacing 100W/m2 CAD Drawing:

  The steel strip and fixer of a stainless steel belt and a regulating screw, which is used for fixing the explosion proof power supply connection box and other accessories in the pipeline.   It is for underfloor heating cable, make installation easier. Application   The steel strip and fixer of a stainless steel belt and a regulating screw, which is used for fixing the explosion proof power supply connection box and other accessories in the pipeline. The steel strip can be cut by 1.1 times the actual fixed length according to the diameter of the pipe. The front and back ends of the adjusting screw are respectively fixed in the small holes of the two ends, and the screw can be tightened. Self-regulating Heating Cable Steel Strapping of a stainless steel belt and a regulating screw, which is used for fixing the explosion proof power supply connection box and other accessories in the pipeline. The steel strip can be cut by 1.1 times the actual fixed length according to the diameter of the pipe. The front and back ends of the adjusting screw are respectively fixed in the small holes of the two ends, and the screw can be tightened.   We have two type of cable strapping, one for our T-cable(3.6mm), another for our I-cable(5.0mm)

The HM-mat is an electrically heated mat designed to prevent snow and ice accumulation around the home or facility, such as on driveway, walkways and stairs and so on.

size: M12/M16/20/ 25/M32/M40 (can be customized) 1" /3/4"/1/2" (can be customized) Material: Polyamide (nylon), stainless steel, brass nickel plated. Scope of use: Fixing and locking devices for various types of cables.

RSR self-regulating heating cables provide the most versatility in heat trace designs and applications.

Product advantages 1.Durable and strong structure 2.High water-proofness.  IP68 3.Long working life 4.25years warranty 5.Small size ,no increase in floor thickness 6.100% screened with Zero EMF 7.100% tested before delivery 8.Free of maintenance Features and applications: •    Round-shape structure, flexible installation. •    About 3.6 mm diameter, convenient for installation. •    Twin conductor structure with one end cold lead for easy installation. •    Zero EMF. •    Can be used safely in wet conditions like bathroom. •    Quick and easy installation. •    Durable structure, long service life requiring no maintenance. •    15-year warranty for quality only, not including wrong installation and misuse.   Warranty: 15 years limited warranty against defect in material, design and workmanship. 120V Length Heating area  Total Power/W  (3.65W/ft) Current/Amps Resistance Ω/m Part Number m ft 11W/ft² 14.5W/ft² HRVC-60-1 5.05 16.5 5.5 4.1 60 0.5 240.0 HRVC-120-1 10.1 33.0 10.9 8.3 120 1.0 120.0 HRVC-180-1 15.1 49.5 16.4 12.4 180 1.5 80.0 HRVC-240-1 20.1 66.0 21.8 16.6 240 2.0 60.0 HRVC-300-1 25.1 82.5 27.3 20.7 300 2.5 48.0 HRVC-360-1 30.2 99.0 32.7 24.8 360 3.0 40.0 HRVC-420-1 35.2 115.5 38.2 29.0 420 3.5 34.3 HRVC-480-1 40.2 132.0 43.6 33.1 480 4.0 30.0 HRVC-540-1 45.3 148.5 49.1 37.2 540 4.5 26.7 HRVC-600-1 50.3 165.0 54.5 41.4 600 5.0 24.0 HRVC-720-1 60.4 198.0 65.5 49.7 720 6.0 20.0 HRVC-840-1 70.4 231.0 76.4 57.9 840 7.0 17.1 HRVC-960-1 80.5 264.0 87.3 66.2 960 8.0 15.0 HRVC-1080-1 90.5 297.0 98.2 74.5 1080 9.0 13.3 HRVC-1200-1 100.5 330.0 109.1 82.8 1200 10.0 12.0 HRVC-1320-1 110.6 363.0 120.0 91.0 1320 11.0 10.9 HRVC-1440-1 120.7 396.0 130.9 99.3 1440 12.0 10.0 HRVC-1560-1 130.8 429.0 141.8 107.6 1560 13.0 9.2 HRVC-1680-1 140.8 462.0 152.7 115.9 1680 14.0 8.6 HRVC-1800-1 150.9 495.0 163.6 124.1 1800 15.0 8.0 240V Length Heating area   Total Power/W (3.65W/ft) Current/Amps Resistance Ω/m Part Number m ft 11W/ft² 14.5W/ft² HRVC-120-2 10.1 33.0 10.9 8.3 120 0.5 480.0 HRVC-180-2 15.1 49.5 16.4 12.4 180 0.8 320.0 HRVC-240-2 20.2 66.0 21.8 16.6 240 1.0 240.0 HRVC-300-2 25.1 82.5 27.3 20.7 300 1.3 192.0 HRVC-360-2 30.2 99.0 32.7 24.8 360 1.5 160.0 HRVC-420-2 35.2 115.5 38.2 29.0 420 1.8 137.1 HRVC-480-2 40.2 132.0 43.6 33.1 480 2.0 120.0 HRVC-540-2 45.3 148.5 49.1 37.2 540 2.3 106.7 HRVC-600-2 50.2 165.0 54.5 41.4 600 2.5 96.0 HRVC-720-2 60.4 198.0 65.5 49.7 720 3.0 80.0 HRVC-840-2 70.4 231.0 76.4 57.9 840 3.5 68.6 HRVC-960-2 80.4 264.0 87.3 66.2 960 4.0 60.0 HRVC-1080-2 90.6 297.0 98.2 74.5 1080 4.5 53.3 HRVC-1200-2 100.6 330.0 109.1 82.8 1200 5.0 48.0 HRVC-1280-2 110.8 363.0 116.4 88.3 1280 5.3 45.0 HRVC-1440-2 120.8 396.0 130.9 99.3 1440 6.0 40.0 HRVC-1560-2 130.6 429.0 141.8 107.6 1560 6.5 36.9 HRVC-1680-2 140.8 462.0 152.7 115.9 1680 7.0 34.3 HRVC-1920-2 161.0 528.0 174.5 132.4 1920 8.0 30.0 HRVC-2160-2 181 594 196.4 149.0 2160 9.0 26.7 HRVC-2400-2 201 660 218.2 165.5 2400 10.0 24.0 HRVC-2640-2 221.2 726 240.0 182.1 2640 11.0 21.8 HRVC-2880-2 241.4 792 261.8 198.6 2880 12.0 20.0 HRVC-3120-2 261.6 858 283.6 215.2 3120 13.0 18.5 HRVC-3360-2 281.6 924 305.5 231.7 3360 14.0 17.1 HRVC-3600-2 301.8 990 327.3 248.3 3600 15.0 16.0 Herein, 1 and 2 means the operation voltage, “1”=120V, “2”=240V

Maintenance temperature: 0-200 ℃ Temperature resistance: 600 ℃ Insulation material: customizable
