Self-regulating Heating Cables

HPC   HPC self-regulating heating cables is designed for freeze protection or process temperature maintenance of pipes and vessels with very high maintain temperatures (210°C). Maximum exposure temperature is 260°C. which provides the most versatility in heat trace designs and installation.Constructed of a semi-conductive heater matrix extruded between parallel bus wires, a self-regulating cable adjusts its output to independently respond to ambient temperatures all along its length     Application   HPC series self-regulating heating cables are suitable for freeze protection and process temperature maintenance of pipes, tanks, valves, flanges, and heating requests that require high power output. Certified for use in hazardous and ordinary areas

This type electronic thermostat for mounting in standard wall box.

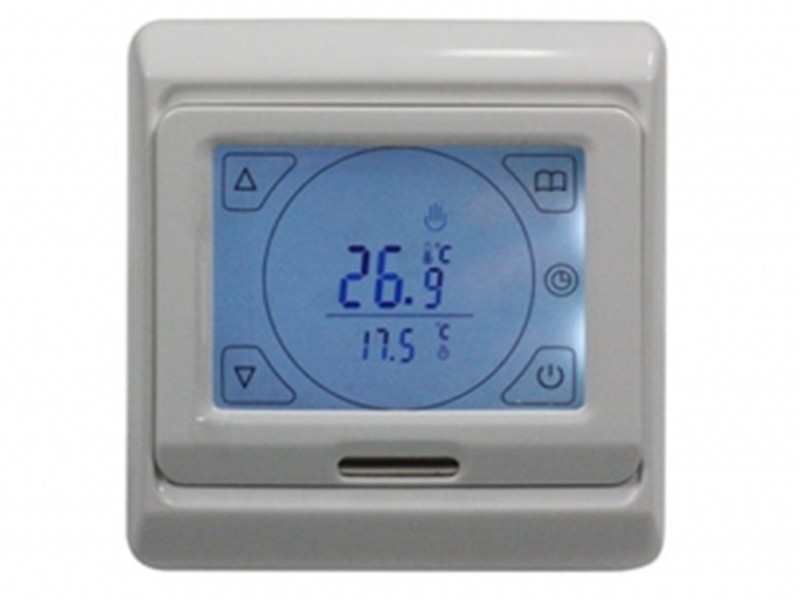

Touch Screen Period Programming Thermostat.

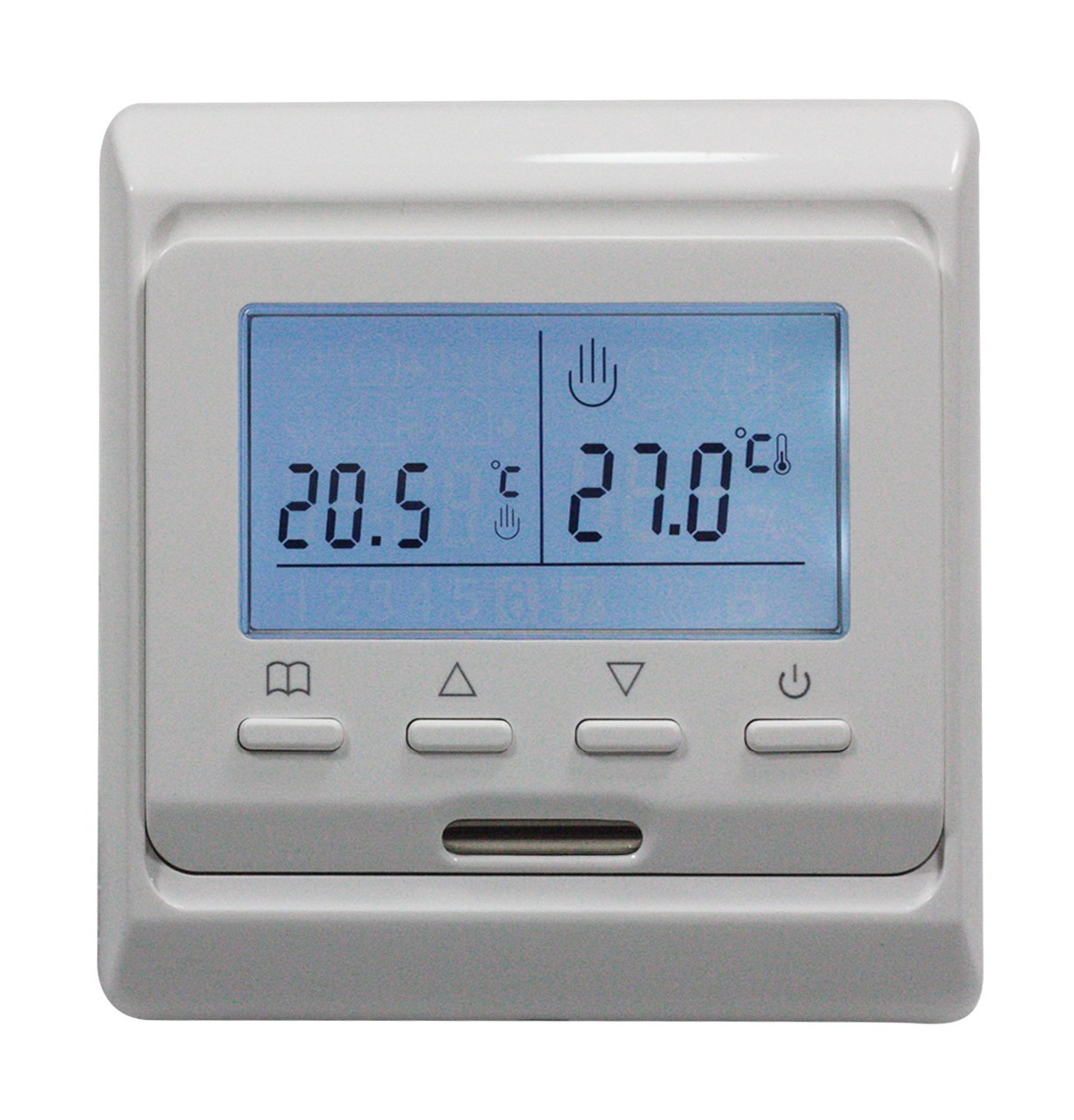

Weekly Programming Thermostat with LCD Screen.

1.Economical 2.Replace virtually any two-wire line voltage wall-mounted electric heating thermostat 3.Easy to install 4.Rugged, plastic mounting base and one-piece cover with vents 5.Ideally suited to new construction applications

  MSR-Kit     MSR heating cable with a prefabricated plug for easier connection to AC power. Typical applications include process temperature maintenance, frost protection of small diameter pipelines, tanks, valves, flanges The heating cable kit with fluoropolymer or thermoplastic outer jacket is non-toxic and suitable for drinking water pipes. The kit is energy saving and environmentally-friendly, it is also  UV-proof. For exterior laying, use additional kits. For interior laying, maximum applicable cable length is 60m.

MSR   MSR is ideally used for process temperature maintenance and frost protection of small diameter pipelines, tanks, valves, flanges. It is suitable for non-hazardous area, and cable with fluoropolymer outer jacket can also be used in hazardous area and corrosive area. What's more, the MSR with fluoropolymer outer jacket can be used inside the water pipe. The material has safety certificate for drinking water; it's safe and made to comply with the environ mental protection standards.   MSR Series MSR-P: Tinned copper braid provides additional mechanical and ground protection.  MSR-PF: Fluoropolymer outer jacket is used for exposure to organic or corrosive working conditions. MSR-PB: Flame retardant thermoplastic outer jacket protects against certain inorganic chemical solutions, it also protects against abrasion and impact damage.

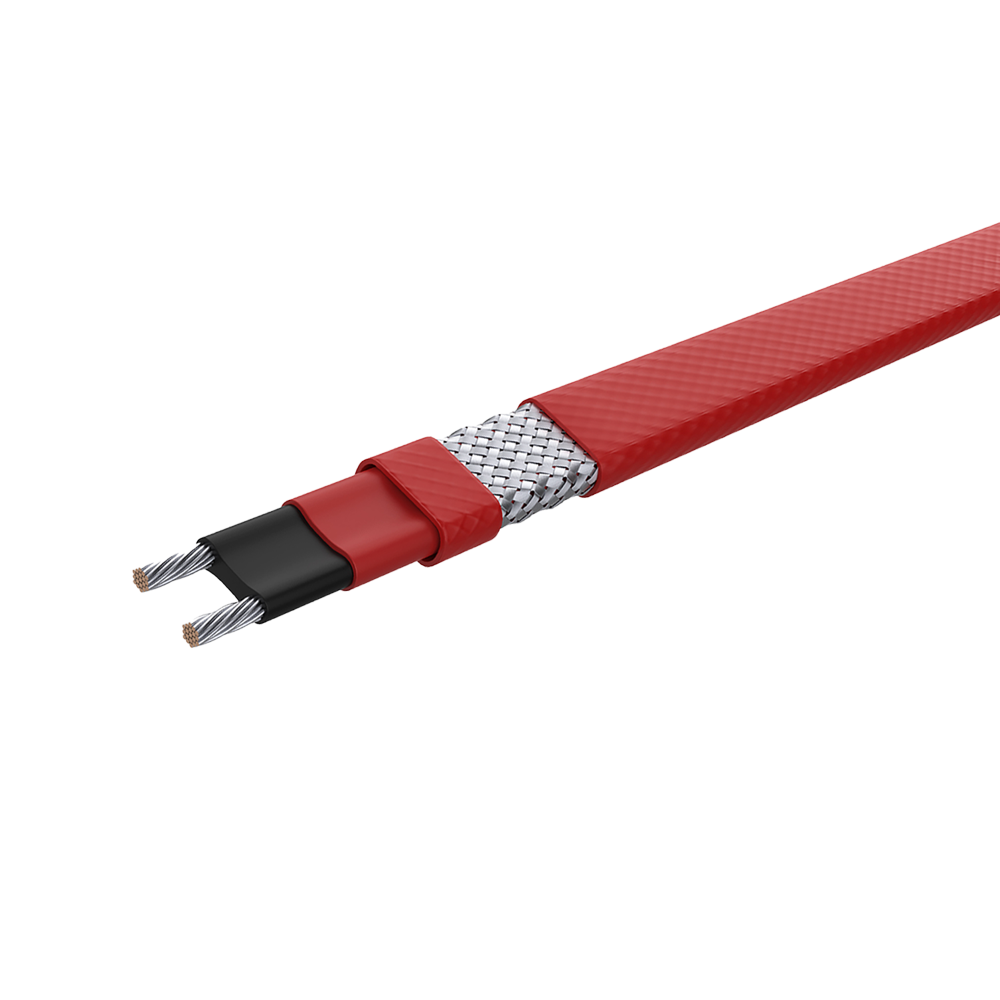

XBR   XBR self-regulating heating cables provides the most versatility in heat trace designs and applications.With Fluoropolymer material for inner insulation andouter jacket , the heating cable is resistant to watery and inorganic chemicals and protected against abrasion and impacted damage.  XBR series self-regulating heating cables are suitable for defrosting and temperature maintenance of pipes, tanks, valves, flanges and heating requests that requi re high power output. Also suitable for applications in explosion-proof and corrosive environments. The XBR series self-regulating heating cable can withstand the highest exposure temperature up to 200℃ (392℉), and the highest maintain temperature can reach 120℃ (248℉)   This product has been used for over 100,000 meters in our company’s key partners, PetroChina, CNOOC,Sinopec,China Aerospace,Wanhua Chemical and other global Fortune 500 companies.

SSR   Constructed of a semi-conductive heater matrix extruded between parallel bus wires, a self-regulating cable adjusts its output to independently respond to ambient temperatures all along its length.SSR self-regulating heating cables provide the most versatility in heat trace designs and applications.   Application SSR is ideally used for process temperature maintenance and frost protection of large diameter pipelines, tanks, valves, flanges, and other industrial applications of high heat loss issues. It is suitable for non-hazardous area, and cable with fluoropolymer outer jacket can also be used in hazardous area and corrosive area.   SSR Series SSR-P: Tinned copper braid provides additional mechanical and ground protection.  SSR-PB: Flame retardant thermoplastic outer jacket protects against certain inorganic chemical solutions, it also protects against abrasion and impact damage. SSR-PF: Fluoropolymer outer jacket is used for exposure to organic or corrosive working conditions or vapor may exist.

RSR(EU/North America)   RSR is designed for pipe heat trace in industrial applications. It is ideally used for process temperature maintenance and frost protection of large diameter pipelines, tanks, valves, flanges and other applications of high heat loss issues. It is suitable for non-hazardous area, and cable with fluoropolymer outer jacket can also be used in hazardous area and corrosive area.   RSR Series RSR-P: Tinned copper braid provides additional mechanical and ground protection.  RSR-PF: Fluoropolymer outer jacket is used for exposure to organic or corrosive working conditions or vapor may exist. PSR-PB: Flame retardant thermoplastic outer jacket protects against certain inorganic chemical solutions, it also protects against abrasion and impact damage.

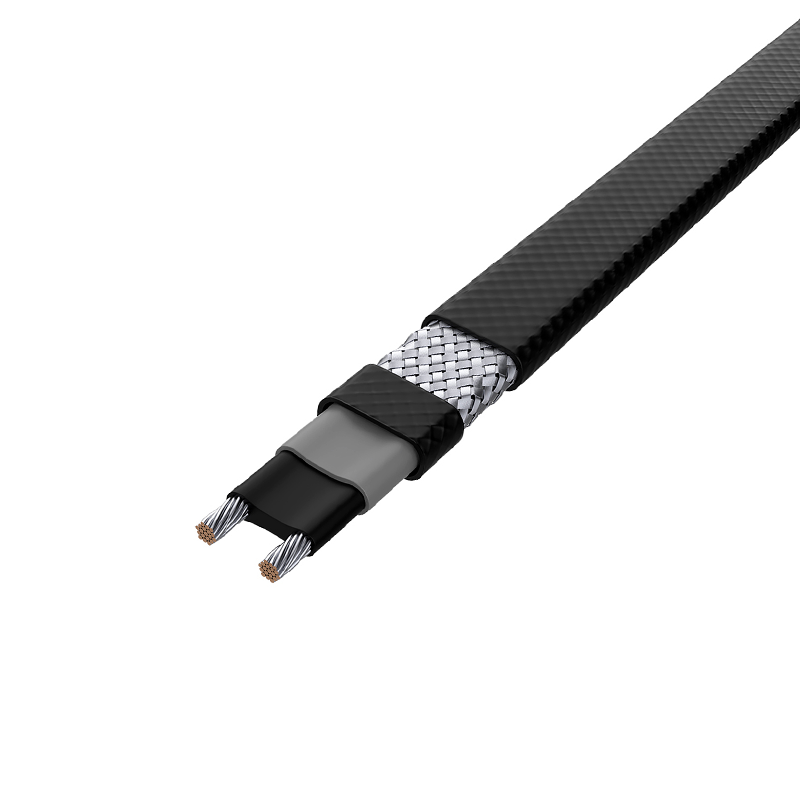

LSR   LSR is ideally used for process temperature maintenance and frost protection of regular diameter pipelines, tanks, valves, flanges, roof & gutter de-icing, snow melting and other applications of low temperature working conditions . LSR self-regulating heating cables provide the most versatility in heat trace designs and applications.   This product has been used for over 1000,000 meters in our company’s key partners, PetroChina, CNOOC,Sinopec,China Aerospace,Wanhua Chemical and other global Fortune 500 companies.   LSR Series: LSR: Flame retardant thermoplastic outer insulation jacket protects against certain inorganic chemical solutions, it also protects against abrasion and impact damage. LSR-P: Tinned copper braid provides additional mechanical and ground protection. LSR-PB: Flame retardant thermoplastic outer jacket protects against certain inorganic chemical solutions, it also protects against abrasion and impact damage.   LSR-PF: Fluoropolymer outer jacket is used for exposure to organic or corrosive working conditions.
