Double-Core Floor Heating System Bathroom Floor Tile Heating Mat

Product Description：Floor Heating membrane UM505 Material：polyethylene(PE)film top; polypropylene (PP) nonwoven bottom Roll Size：1mx20m,1mx10m,1mx5m Weight：1000g/sqm Thickness：5.6mm Film thick:0.45mm Wire cable diameter：3.6-4.2mm Installation Temperature：-10℃to 40℃, but limited by tile adhesive specification Storage Temperature：Max. 45℃ Melting：160℃ Steam Resistance：160m Equivalent air layer Air gap volume：2.8 litre/m2 Filling volume of the studs：2.3 litre/m2 Distance of the studs：4.0 mm Crack bridging：0.32mm Tensile Strength：73N/cm Waterpoof：yes Packing：wrapped in plastic film Color：Red, Orange, Yellow, Blue etc Estimation of power may achieve from different cable distribution: @64mm spacing 214W/m2 @96mm spacing 142W/m2 @128mm spacing 100W/m2 CAD Drawing:

It is a twin conductor heating cable designed for ice and snow melting applications.

Product advantages 1.Durable and strong structure 2.High water-proofness.  IP68 3.Long working life 4.25years warranty 5.Small size ,no increase in floor thickness 6.100% screened with Zero EMF 7.100% tested before delivery 8.Free of maintenance Features and applications • Residential indoor floor warming. • Workable in humid places such as bathroom. • Applicable for flooring material like concrete, ceramic tile, marble, wood. • Easy installation for indoor whole and partial warming systems for floor and wall warming. • 2.8mm in diameter; lower height, cost-saving. Part Number Length/ m OutputPower/W Resistance/ Q S-cable15-150 10 150 352.7 S-cable15-225 15 225 235.1 S-cable15-300 20 300 176.3 S-cable15-375 25 375 141.1 S-cable15-450 30 450 117.6 S-cable15-525 35 525 100.8 S-cable15-600 40 600 88.2 S-cable15-750 50 750 70.5 S-cable15-900 60 900 58.8 S-cable15-1050 70 1050 50.4 S-cable15-1200 80 1200 44.1 S-cable15-1350 90 1350 39.2 S-cable15-1500 100 1500 35.3 S-cable15-1800 120 1800 29.4 Part Number Length/ m Power Output/W Resistance/Q S-cable10-100 10 100 529.0 S-cable10-150 15 150 352.7 S-cable10-200 20 200 264.5 S-cable10-250 25 250 211.6 S-cable10-300 30 300 176.3 S-cable10-350 35 350 151.1 S-cable10-400 40 400 132.3 S-cable10-450 45 450 117.6 S-cable10-500 50 500 105.8 S-cable10-600 60 600 88.2 S-cable10-700 70 700 75.6 S-cable10-800 80 800 66.1 S-cable10-900 90 900 58.8 S-cable10-1000 100 1000 52.9 S-cable10-1200 120 1200 44.1

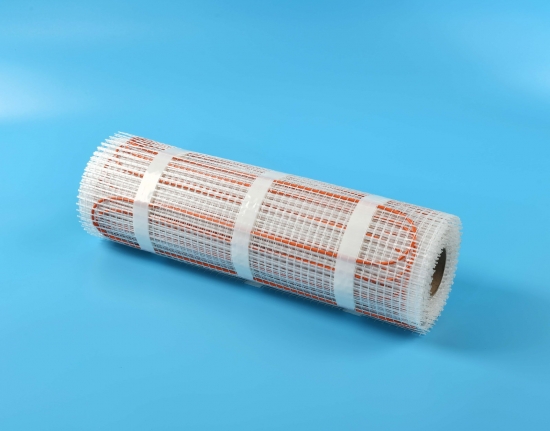

HRDVTF underfloor heating mat uses a twin conductor heating cable for easy installation, and mat is designed for installation into thin adhesive beds, leveling compounds or thin screed beds beneath tiled and wooden floor.

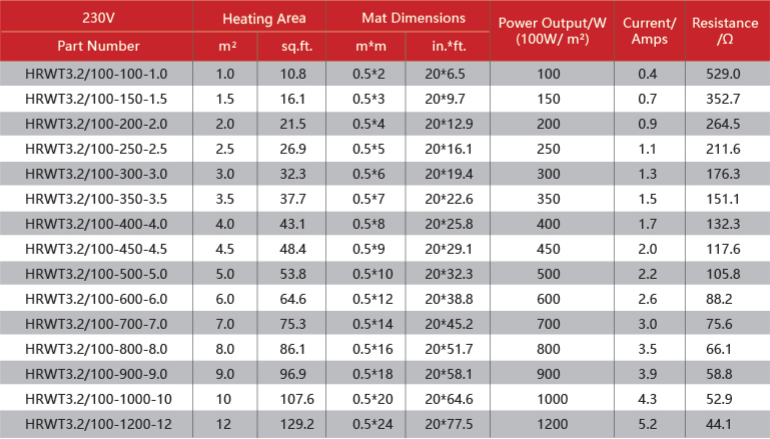

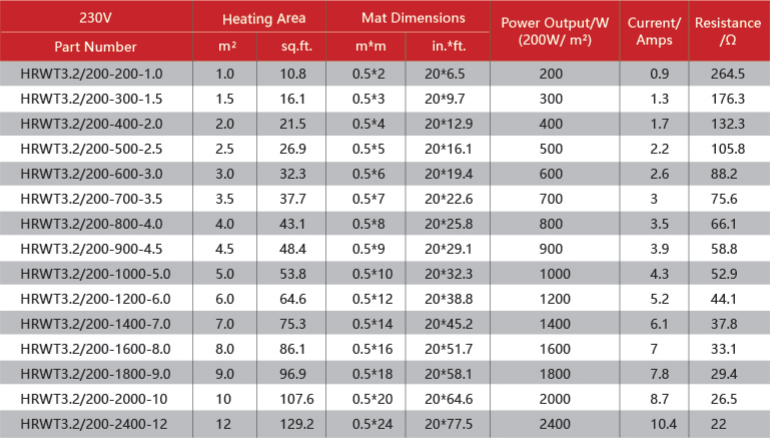

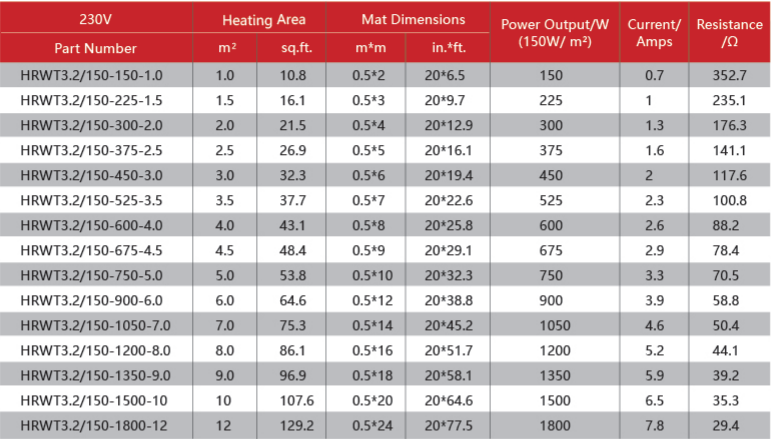

Product advantages 1.Durable and strong structure 2.High water-proofness.  IP68 3.Long working life 4.25years warranty 5.Small size ,no increase in floor thickness 6.100% screened with Zero EMF 7.100% tested before delivery 8.Free of maintenance Features and applications: •    Round-shape structure, flexible installation. •    About 3.6 mm diameter, convenient for installation. •    Twin conductor structure with one end cold lead for easy installation. •    Zero EMF. •    Can be used safely in wet conditions like bathroom. •    Quick and easy installation. •    Durable structure, long service life requiring no maintenance. •    15-year warranty for quality only, not including wrong installation and misuse.   Warranty: 15 years limited warranty against defect in material, design and workmanship. 120V Length Heating area  Total Power/W  (3.65W/ft) Current/Amps Resistance Ω/m Part Number m ft 11W/ft² 14.5W/ft² HRVC-60-1 5.05 16.5 5.5 4.1 60 0.5 240.0 HRVC-120-1 10.1 33.0 10.9 8.3 120 1.0 120.0 HRVC-180-1 15.1 49.5 16.4 12.4 180 1.5 80.0 HRVC-240-1 20.1 66.0 21.8 16.6 240 2.0 60.0 HRVC-300-1 25.1 82.5 27.3 20.7 300 2.5 48.0 HRVC-360-1 30.2 99.0 32.7 24.8 360 3.0 40.0 HRVC-420-1 35.2 115.5 38.2 29.0 420 3.5 34.3 HRVC-480-1 40.2 132.0 43.6 33.1 480 4.0 30.0 HRVC-540-1 45.3 148.5 49.1 37.2 540 4.5 26.7 HRVC-600-1 50.3 165.0 54.5 41.4 600 5.0 24.0 HRVC-720-1 60.4 198.0 65.5 49.7 720 6.0 20.0 HRVC-840-1 70.4 231.0 76.4 57.9 840 7.0 17.1 HRVC-960-1 80.5 264.0 87.3 66.2 960 8.0 15.0 HRVC-1080-1 90.5 297.0 98.2 74.5 1080 9.0 13.3 HRVC-1200-1 100.5 330.0 109.1 82.8 1200 10.0 12.0 HRVC-1320-1 110.6 363.0 120.0 91.0 1320 11.0 10.9 HRVC-1440-1 120.7 396.0 130.9 99.3 1440 12.0 10.0 HRVC-1560-1 130.8 429.0 141.8 107.6 1560 13.0 9.2 HRVC-1680-1 140.8 462.0 152.7 115.9 1680 14.0 8.6 HRVC-1800-1 150.9 495.0 163.6 124.1 1800 15.0 8.0 240V Length Heating area   Total Power/W (3.65W/ft) Current/Amps Resistance Ω/m Part Number m ft 11W/ft² 14.5W/ft² HRVC-120-2 10.1 33.0 10.9 8.3 120 0.5 480.0 HRVC-180-2 15.1 49.5 16.4 12.4 180 0.8 320.0 HRVC-240-2 20.2 66.0 21.8 16.6 240 1.0 240.0 HRVC-300-2 25.1 82.5 27.3 20.7 300 1.3 192.0 HRVC-360-2 30.2 99.0 32.7 24.8 360 1.5 160.0 HRVC-420-2 35.2 115.5 38.2 29.0 420 1.8 137.1 HRVC-480-2 40.2 132.0 43.6 33.1 480 2.0 120.0 HRVC-540-2 45.3 148.5 49.1 37.2 540 2.3 106.7 HRVC-600-2 50.2 165.0 54.5 41.4 600 2.5 96.0 HRVC-720-2 60.4 198.0 65.5 49.7 720 3.0 80.0 HRVC-840-2 70.4 231.0 76.4 57.9 840 3.5 68.6 HRVC-960-2 80.4 264.0 87.3 66.2 960 4.0 60.0 HRVC-1080-2 90.6 297.0 98.2 74.5 1080 4.5 53.3 HRVC-1200-2 100.6 330.0 109.1 82.8 1200 5.0 48.0 HRVC-1280-2 110.8 363.0 116.4 88.3 1280 5.3 45.0 HRVC-1440-2 120.8 396.0 130.9 99.3 1440 6.0 40.0 HRVC-1560-2 130.6 429.0 141.8 107.6 1560 6.5 36.9 HRVC-1680-2 140.8 462.0 152.7 115.9 1680 7.0 34.3 HRVC-1920-2 161.0 528.0 174.5 132.4 1920 8.0 30.0 HRVC-2160-2 181 594 196.4 149.0 2160 9.0 26.7 HRVC-2400-2 201 660 218.2 165.5 2400 10.0 24.0 HRVC-2640-2 221.2 726 240.0 182.1 2640 11.0 21.8 HRVC-2880-2 241.4 792 261.8 198.6 2880 12.0 20.0 HRVC-3120-2 261.6 858 283.6 215.2 3120 13.0 18.5 HRVC-3360-2 281.6 924 305.5 231.7 3360 14.0 17.1 HRVC-3600-2 301.8 990 327.3 248.3 3600 15.0 16.0 Herein, 1 and 2 means the operation voltage, “1”=120V, “2”=240V

l-cable underfloor heating cable is designed for new buildings applications or any other circumstances where screed is going to be laid, l-cable is a twin conductor heating cable for easy installation with zero EMF.

Product advantages 1.Durable and strong structure 2.High water-proofness.  IP68 3.Long working life 4.25years warranty 5.Small size ,no increase in floor thickness 6.100% screened with Zero EMF 7.100% tested before delivery 8.Free of maintenance 9.Anti-UV Features and applications • 5.5mm diameter. • Twin conductor; with plug, ready for use. • Zero EMF. • Can be used in humid places. • Multi-layer XLPE material, the mechanical strength of the product can reach class. M2, and will not be deformed in short-term exposure up to 150°C. • This product is mainly used for concrete curing.
