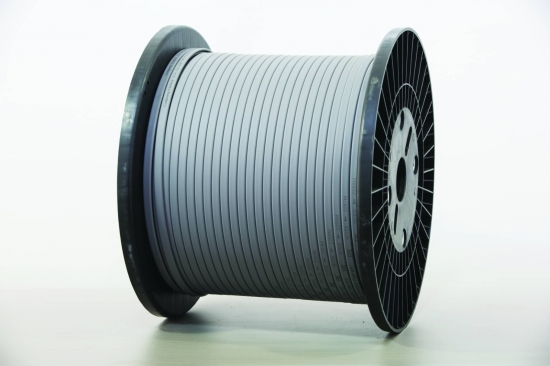

Basic/Enhanced Type Self-regulating Heat Tracing Cable for De-cing Defrosting Freeze Protection

self regulating heating cable

Basic/Enhanced Type Self-regulating Heat Tracing Cable for De-cing Defrosting Freeze Protection


LSR self-regulating heating cables provide the most versatility in heat trace designs and applications.


  • Brand:

    Huanrui

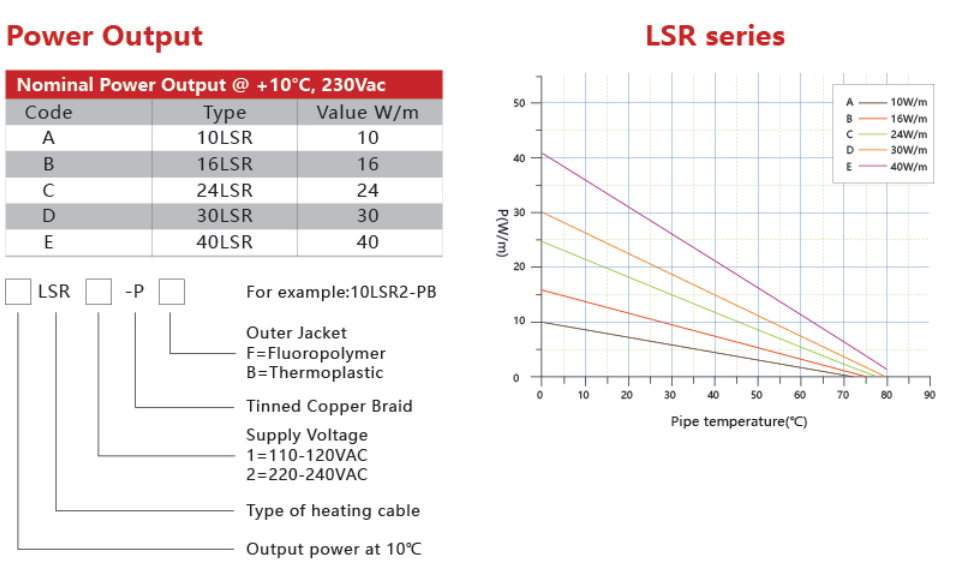

  • Power Ouput:

    10,16,24,30,40(W/M)
  • Max. Maintain Temperature:

    65℃
  • Max. Exposure Temperature:

    85℃
  • Min. Installation Temperature:

    -40℃
  • Rated Voltage:

    110V-120V/220V-240V
  • Max. Resistance of Braid:

    ≤18.2Ω/Km
  • Bus Wire Gauge:

    16AWG
  • Certifications:

    CE,EAC,EACEX,ATEX

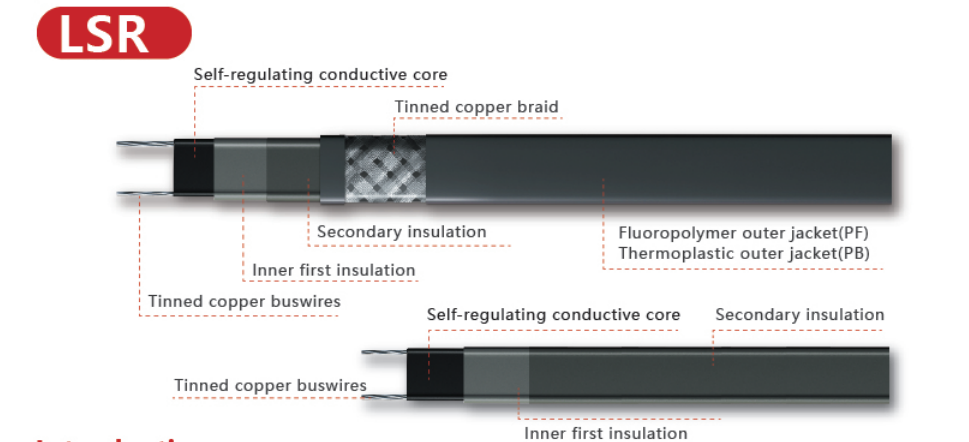

Constructed of a semi-conductive heater matrix extruded between parallel bus wires, a self-regulating cable adjusts its output to independently respond to ambient temperatures all along its length. As temperature increases, the heater's resistance increases, which lowers the output wattage. Conversely, as the temperature decreases, the resistance decreases and the cable produces more heat. So thermostat is not necessary in some applications. It will never overheat or burnout even when overlapped. The cable can also be cut to any length. As the result, we got an energy efficient heating cable.

LSR self-regulating heating cable is resistant to watery and inorganic chemicals and protected against abrasion and impact damage.

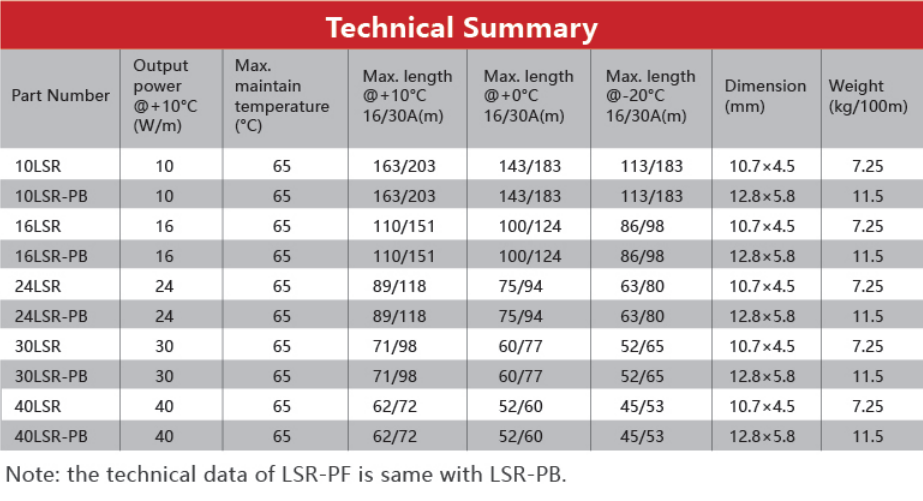

LSR Series:
LSR: Flame retardant thermoplastic outer insulation jacket protects against certain inorganic chemical solutions, it also protects against abrasion and impact damage.
LSR-P: Tinned copper braid provides additional mechanical and ground protection.
LSR-PB: Flame retardant thermoplastic outer jacket protects against certain inorganic chemical solutions, it also protects against abrasion and impact damage.
LSR-PF: Fluoropolymer outer jacket is used for exposure to organic or corrosive working conditions.



Product advantages

1.Self regulating heating cable :

2.Low decrease in wattage

3.Long working life

4.Low starting current

5.High insulation resistance

6.High resistance to low and high temperature

7.Patented 3-layer co-extrusion technique

8.High stability in performance

9.Free of maintenance

10.Durable and strong structure

11.100% tested before delivery

12.Anti-UV


Application

LSR is ideally used for process temperature maintenance and frost protection of regular diameter pipelines, tanks, valves, flanges, roof & gutter de-icing, snow melting and other applications of low temperature working conditions. It is suitable for hazardous area, and cable with fluoropolymer outer jacket can also be used in hazardous area and corrosive area. The cable with UV stabilized thermoplastic elastomer outer jacket is provided to cover the braid for wet applications and exposure to the sun.
