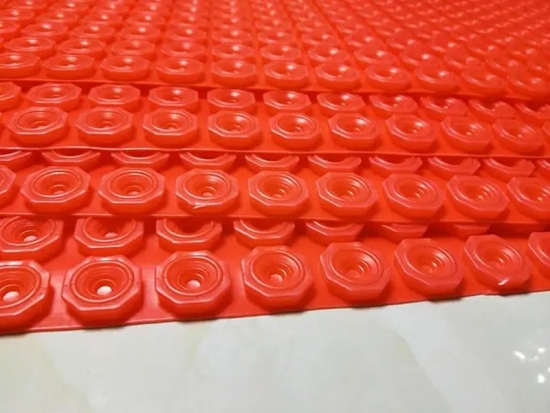

Floor Heating Uncoupling Membrane As Perfect Inlay For Heating Cable

floor heating system Accessories

Floor Heating Uncoupling Membrane As Perfect Inlay For Heating Cable

Product DescriptionFloor Heating membrane UM505
Materialpolyethylene(PE)film top; polypropylene (PP) nonwoven bottom
Roll Size1mx20m,1mx10m,1mx5m
Weight1000g/sqm
Thickness:5.6mm
Film thick:0.45mm
Wire cable diameter:3.6-4.2mm
Installation Temperature:-10℃to 40℃, but limited by tile adhesive specification
Storage Temperature:Max. 45℃
Melting:160℃
Steam Resistance:160m Equivalent air layer
Air gap volume:2.8 litre/m2
Filling volume of the studs:2.3 litre/m2
Distance of the studs:4.0 mm
Crack bridging:0.32mm
Tensile Strength:73N/cm
Waterpoof:yes
Packing:wrapped in plastic film
Color:Red, Orange, Yellow, Blue etc
Estimation of power may achieve from different cable distribution:
@64mm spacing 214W/m2
@96mm spacing 142W/m2

@128mm spacing 100W/m2

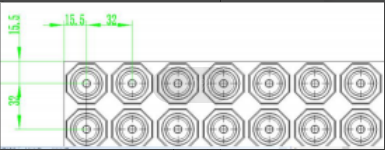

CAD Drawing:
