Pipe Freeze Free Heating Cable FSR
Home / Pipe Freeze Free Heating Cable / Pipe Freeze Free Self-Regulating Heating Cable / Pipe Freeze Free Heating Cable FSR /

220V Customized Heating Tracing Cable/Pipe Tracing/Heat Tracing

self regulating heating cable

220V Customized Heating Tracing Cable/Pipe Tracing/Heat Tracing

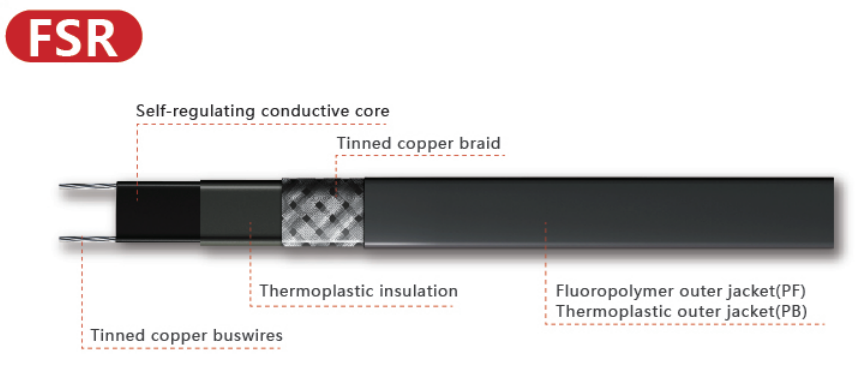

FSR self-regulating heating cable is constructed of a semi-conductive heater matrix extruded between parallel bus wires, a self-regulating cable adjusts its output to independently respond to ambient temperatures all along its length.


  • Brand:

    Huanrui
  • Price Range:

    10000 - 100000/$0.8
  • Price Range:

    5000 - 10000/$1

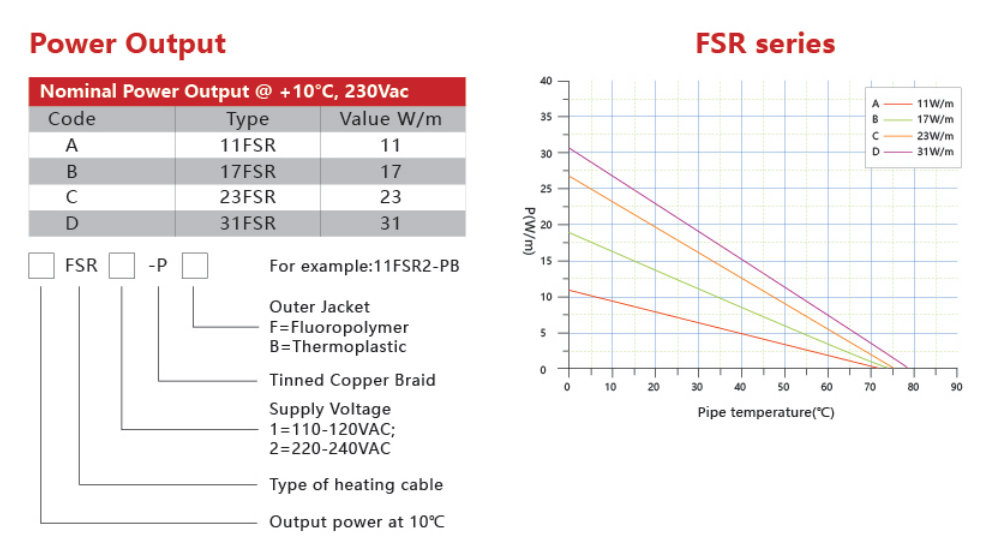

  • Power Ouput:

    11,17,23,31(W/M)
  • Max. Maintain Temperature:

    65℃
  • Max. Exposure Temperature:

    85℃
  • Min. Installation Temperature:

    -40℃
  • Rated Voltage:

    110V-120V/220V-240V
  • Max. Resistance of Braid:

    ≤18.2Ω/Km
  • Bus Wire Gauge:

    18AWG
  • Certifications:

    CE,EAC,EACEX,ATEX


As temperature increases, the heater's resistance increases, which lowers the output wattage. Conversely, as the temperature decreases, the resistance decreases and the cable produces more heat. So thermostat is not necessary in some applications. It will never overheat or burnout even when overlapped. The cable can also be cut to any length. As the result, we got an energy efficient heating cable. With optional outer jackets, the heating cable is resistant to watery and inorganic chemicals and protected against abrasion and impacted damage. Typical application is heat trace designs and applications.



FSR Series

FSR-P: Tinned copper braid provides additional mechanical and ground protection.

FSR-PB: Flame retardant thermoplastic outer jacket protects against certain inorganic chemical solutions, it also protects against abrasion and impact damage.

FSR-PF: Fluoropolymer outer jacket is used for exposure to organic or corrosive working conditions.



Product advantages

1.Self regulating heating cable :

2.Low decrease in wattage

3.Long working life

4.Low starting current

5.High insulation resistance

6.High resistance to low and high temperature

7.Patented 3-layer co-extrusion technique

8.High stability in performance

9.Free of maintenance

10.Durable and strong structure

11.100% tested before delivery

12.Anti-UV



Application

FSR is designed for commercial and residential metal and plastic pipe process temperature maintenance and frost protection of regular pipelines, tanks, valves, flanges, roof & gutter de-icing and other applications of low temperature working conditions. A UV stabilized thermoplastic elastomer outer jacket is provided to cover the braid for wet applications and exposure to the sun. It is suitable for non-hazardous area, then cable with fluoropolymer outer jacket can also be used in hazardous area and corrosive area.
