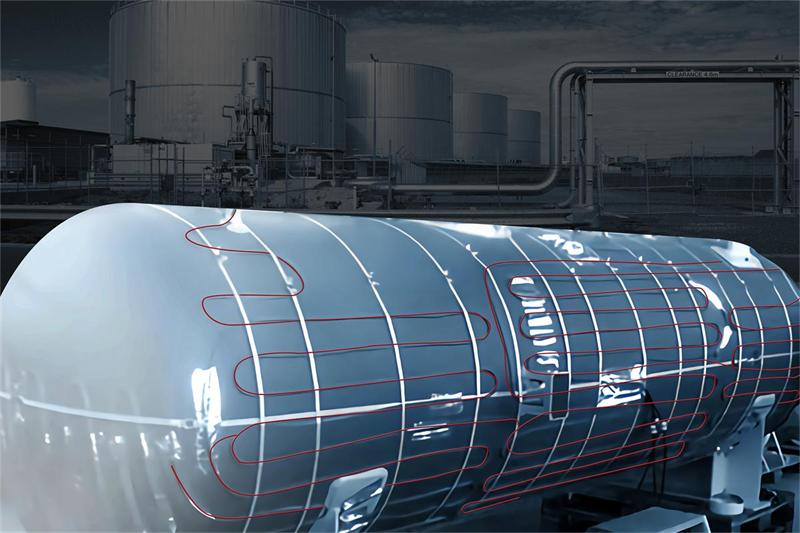

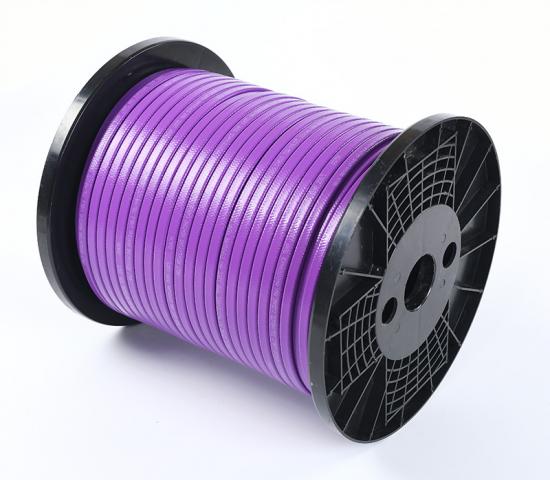

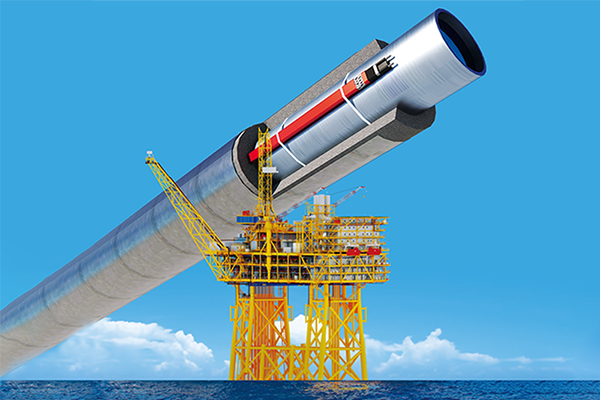

HPC self-regulating heating cables is designed for freeze protection or process temperature maintenance of pipes and vessels with very high maintain temperatures (210°C). Maximum exposure temperature is 260°C. which provides the most versatility in heat trace designs and installation.
Brand:
HuanruiItem NO.:
HPC-SFPower Ouput:
15,30,45,60,75,90 (W/M)Max. Maintain Temperature:
210°CMax. Exposure Temperature:
260°CMin. Installation Temperature:
-60°CRated Voltage:
110V-120V/220V-240VMax. Resistance of Braid:
≤18.2Ω/kmBus Wire Gauge:
1.21mm² & 1.37mm²Outer Jacket:

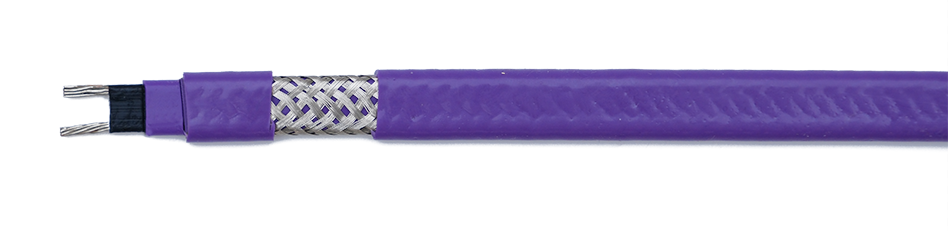

FluoropolymerHPC self-regulating heating cables provides the most versatility in heat trace designs and applications. Constructed of a semi-conductive heater matrix extruded between parallel bus wires, a self-regulating cable adjusts its output to independently respond to ambient temperatures all along its length. As the temperature increases, the heater’s resistance increases, which lowers the output wattage. Conversely, as the temperature decreases, the resistance decreases and the cable produces more heat. So thermostat is not necessary in some applications. It will never overheat or burnout even when overlapped. The cable can also be cut to any length. As the result, we got an energy-efficient heating cable. With Fluoropolymer material for inner insulation and outer jacket, the heating cable is resistant to watery, organics, inorganic chemicals and corrosives.
Advantages of HPC
1. Multiple power designs and wide range.
2. High exposure temperature, reaching 260℃.
3. Special processing technology, low attenuation rate and long service life.
Never overheat or burnout when overlapped. Cut to any length. Easy to install. Super stable power output for long operational life.
Output wattage: 15,30,45,60,75,90 (W/m)
Maximum maintain temperature: 210°C
Maximum exposure temperature: 260°C
Rated voltage: 110-120V,220-240V
Max. resistance of braid: ≤18.2Ω/km
| HPC Series | Output power @10℃ (W/m) | Max maintain temp (℃) |
Max length @10℃ 16/32/50A (m) |
Max length @0℃ 16/32/50A (m) |
Max length @-20℃ 16/32/50A (m) |
Dimension (Reference) |
Weight, 100m (Reference) |
|
15HPC2-SF |
15 | 210 |
120/169/169 |
118/169/169 |
98/169/169 |
10.8×5.0 |
12.5 |
|
30HPC2-SF |
30 |
210 |
81/118/188 |
75/118/118 |
65/118/118 |
10.8×5.0 |
12.5 |
|
45HPC2-SF |
45 |
210 |
61/100/100 |
57/100/100 |
48/98/100 |
10.8×5.0 |
12.5 |
|
60HPC2-SF |
60 |
210 |
48/87/87 |
43/87/87 |
30/82/87 |
10.8×5.0 |
12.5 |
|
75HPC2-SF |
75 |
210 |
32/71/75 |
24/54/75 |
17/39/60 |
10.8×5.0 |
12.5 |
|
90HPC2-SF |
90 |
210 |
20/40/62 |
16/30/48 |
10/22/34 |
10.8×5.0 |
12.5 |
