Underfloor Heating Mat F-mat
Home / Underfloor Heating Cable And Mat / Underfloor Heating Mat / Underfloor Heating Mat F-mat /

Aluminum Foil Under Floor Tile Warm Home Heating Mat

Constant Wattage Heating Mat

Aluminum Foil Under Floor Tile Warm Home Heating Mat

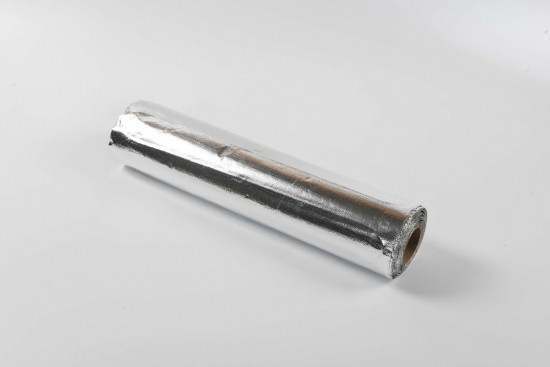

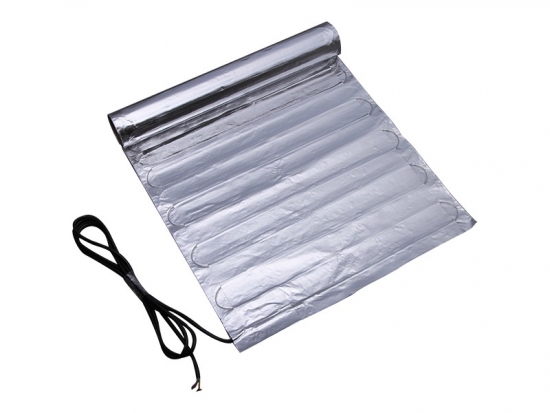

F-mat underfloor heating mats consist of a twin conductor heating cable with fluoropolymer insulation and embed in a reinforced aluminum foil mat. The mat total thickness is ultra-thin, decreasing the floor height and increasing the comfort level.

  • Brand:

    Huanrui
  • Power Ouput:

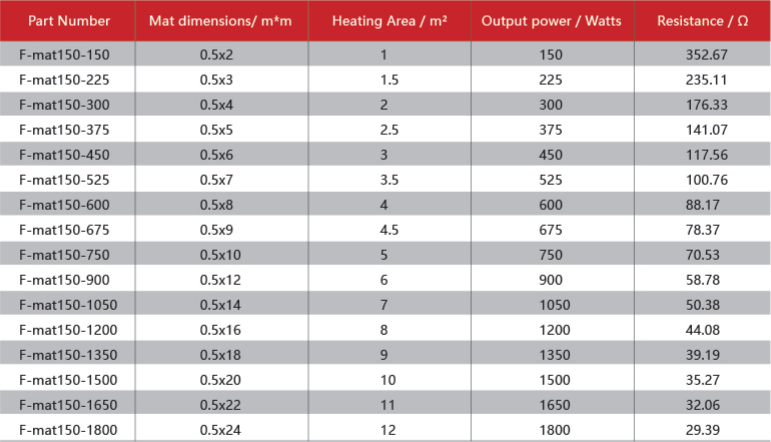

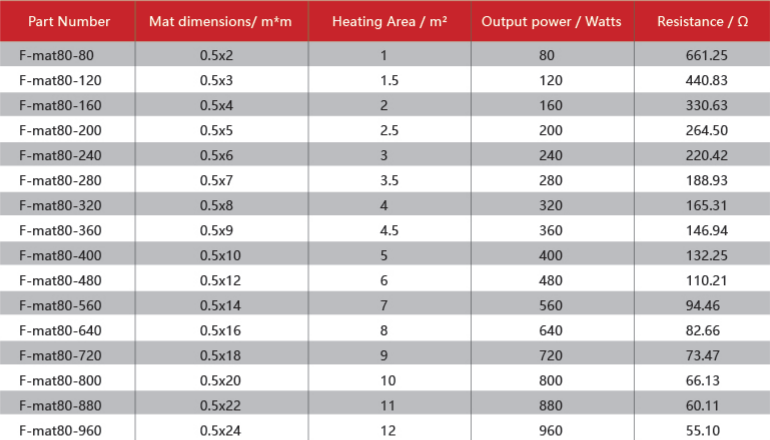

    80w/Sqm,150w/Sqm
  • Min. Installation Temperature:

    5°C
  • Rated Voltage:

    230V
  • Outer dimensions:

    1.0mm
  • Insulation material:

    Fluoropolymer
  • Cable structure:

    Twin conductor
  • Cold lead:

    2.5m length
  • Conductor:

    Solid heating core
  • Connector:

    Out splice
  • Resistance tolerance:

    +10%/-5%
  • Cable spacing:

    50mm
  • Certifications:

    CE,EAC

  F-mat underfloor heating mats are designed for wooden floor; laminated floor and under carpet heating systems.

  F-mat underfloor heating mats can be cut and turned to achieve the required floor coverage and multiple mats can be joined together to cover large areas. When fitting underfloor heating, a suitable insulation should always be used (especially over concrete sub floors).80W/m2 and 150W/m2 mats are provided for option. The 150W/m2 electric heating system can be used as a primary heat source, just for floor warming.



Product advantages

1.Durable and strong structure

2.High water-proofness.  IP68

3.Long working life

4.25years warranty

5.Small size ,no increase in floor thickness

6.100% screened with Zero EMF

7.100% tested before delivery

8.Free of maintenance


 Features

Fully earthed

Ultra-thin

Twin conductor heating cable

One cold lead, 2.5 meters

Flexible installation
