Brand:
HuanruiPower Ouput:
30W/MMin. Installation Temperature:
5°CRated Voltage:
230V,400VOuter Jacket:
PVCOuter dimensions:
6.5mmInsulation material:
Fluoropolymer and XLPECable structure:
Twin conductorHeating element length:
10m to 120mBending radius:
38mmJacket optional:
XLPO for HM-cable(R)Shield:
Aluminum-plastic tape and tinned copper wiresMax. rated temperature:
105°CCold lead:
6m lengthCertifications:

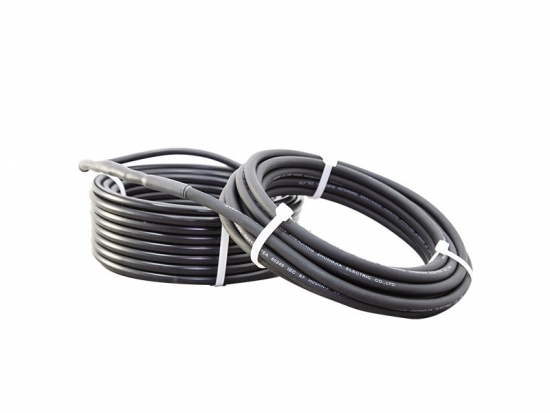

CEThe HM-cable is an electrically heated cable designed to prevent snow and ice accumulation around the home or facility, such as driveway, walkways and stairs and so on.
In winter; when the accumulated snow on walkways, parking garage, loading ramps, stairways and other areas, it will bring problem to people's life. Electric snow melting systems can keep walkways, parking garage, loading ramps, stairways and other areas free of snow and ice to help prevent slip hazards. Electric snow melting systems provide surface snow melting and anti-icing for concrete surfaces and pavers.
Product advantages
1.Durable and strong structure
2.High water-proofness. IP68
3.Long working life
4.25years warranty
5.Small size ,no increase in floor thickness
6.100% screened with Zero EMF
7.100% tested before delivery
8.Free of maintenance
9.Anti-UV
Features
• Single point connection
• Robust, efficient, and safe
• Easy and flexible installation
• 10-year limited warranty against manufacturing defects
• Two conductors
• Emits zero EMF (electromagnetic fields)
• Durable structure
Applications
Installation of the HM-cable snow melting system provides a permanent solution to the problems caused by cold weather when snow and ice accumulation. It can be used both outdoor and indoor environment.

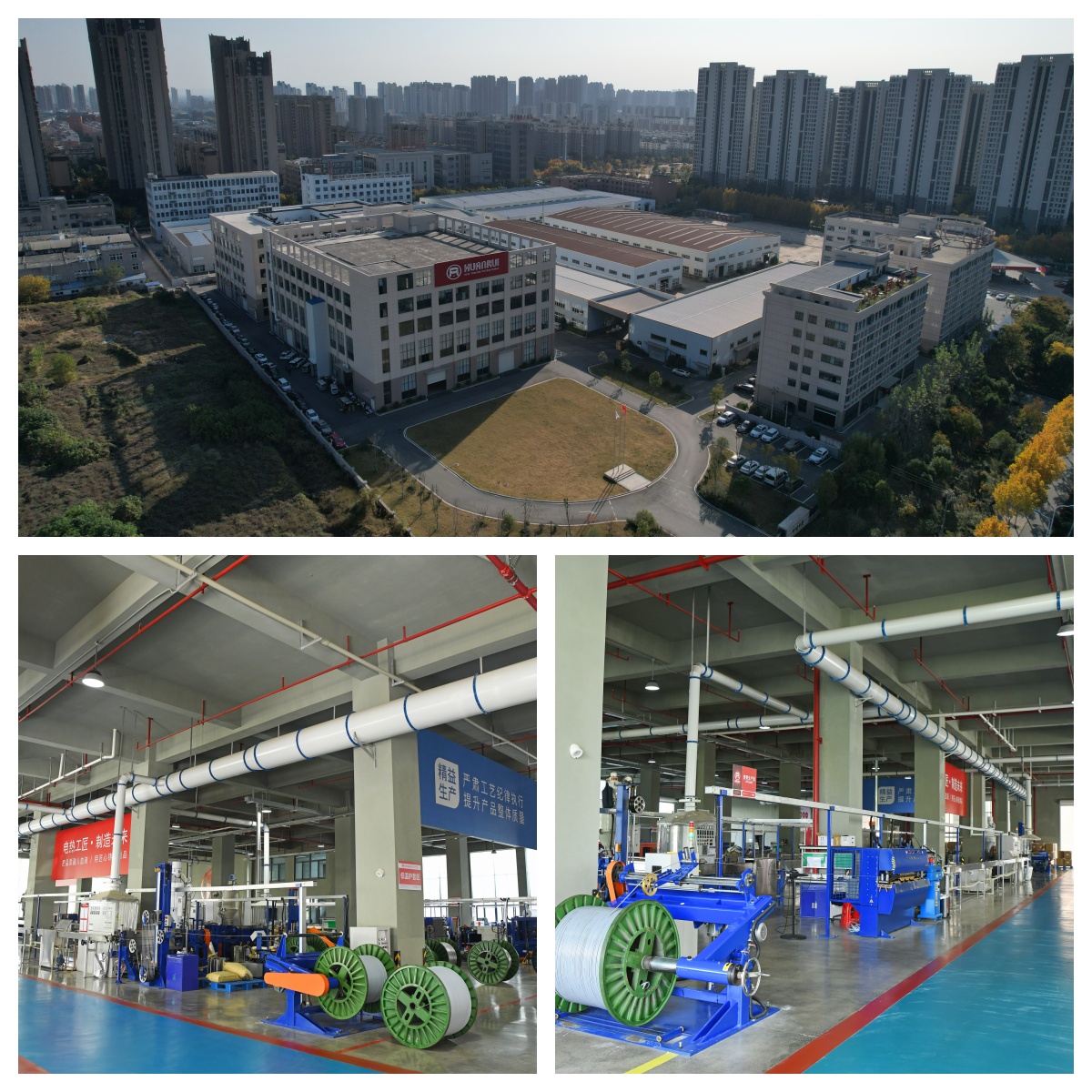

Real-life aerial photography of Anhui Huanrui, with a construction area of over 50,000 square meters.

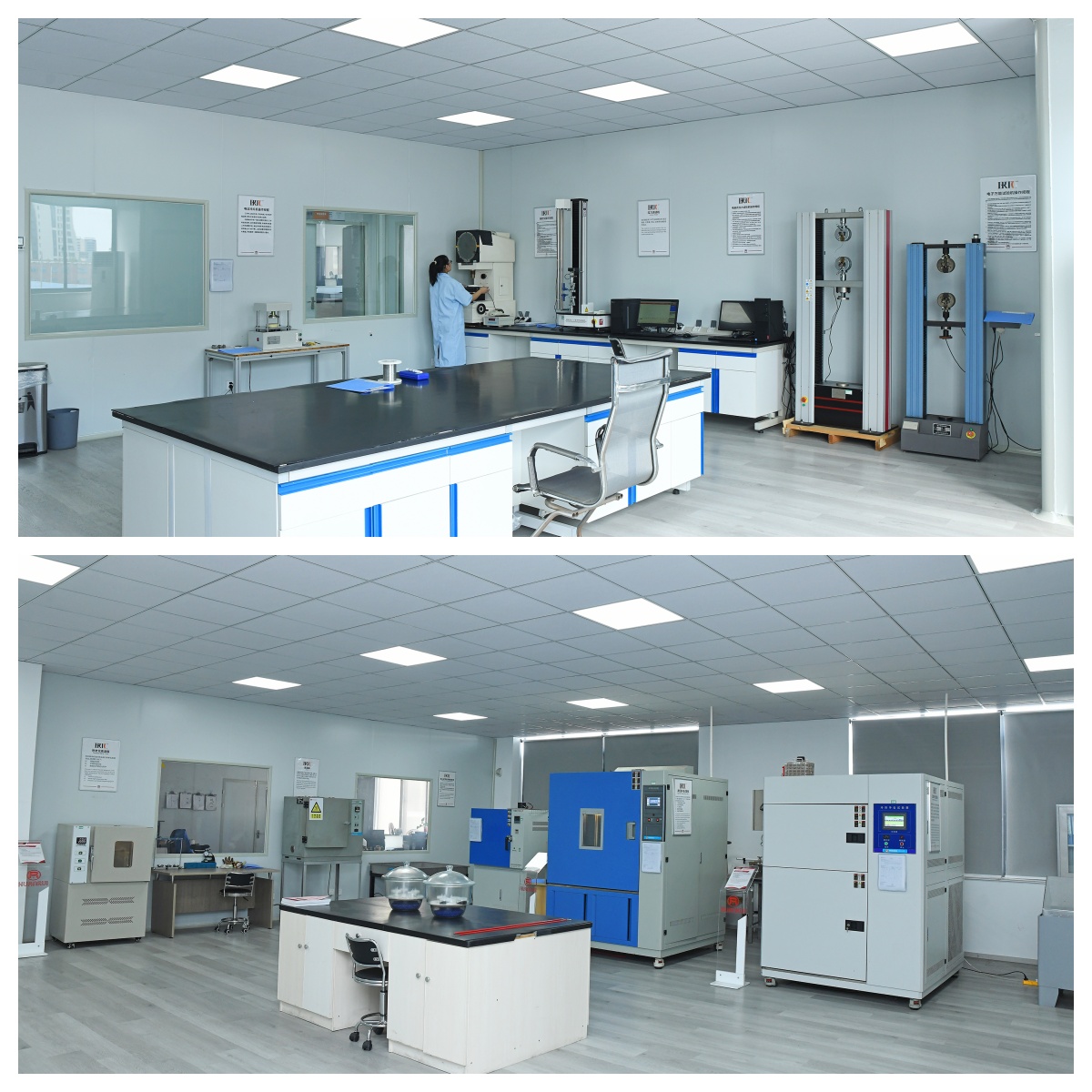

Anhui Huanrui Experimental Testing Center covers an area of over 1,000 square meters and can independently conduct more than 80 tests.
Anhui Huanrui has more than 10 world authoritative certificates, and its electric heating products are exported to more than 50 countries.
Some office spaces and digital exhibition halls of Anhui Huanrui.

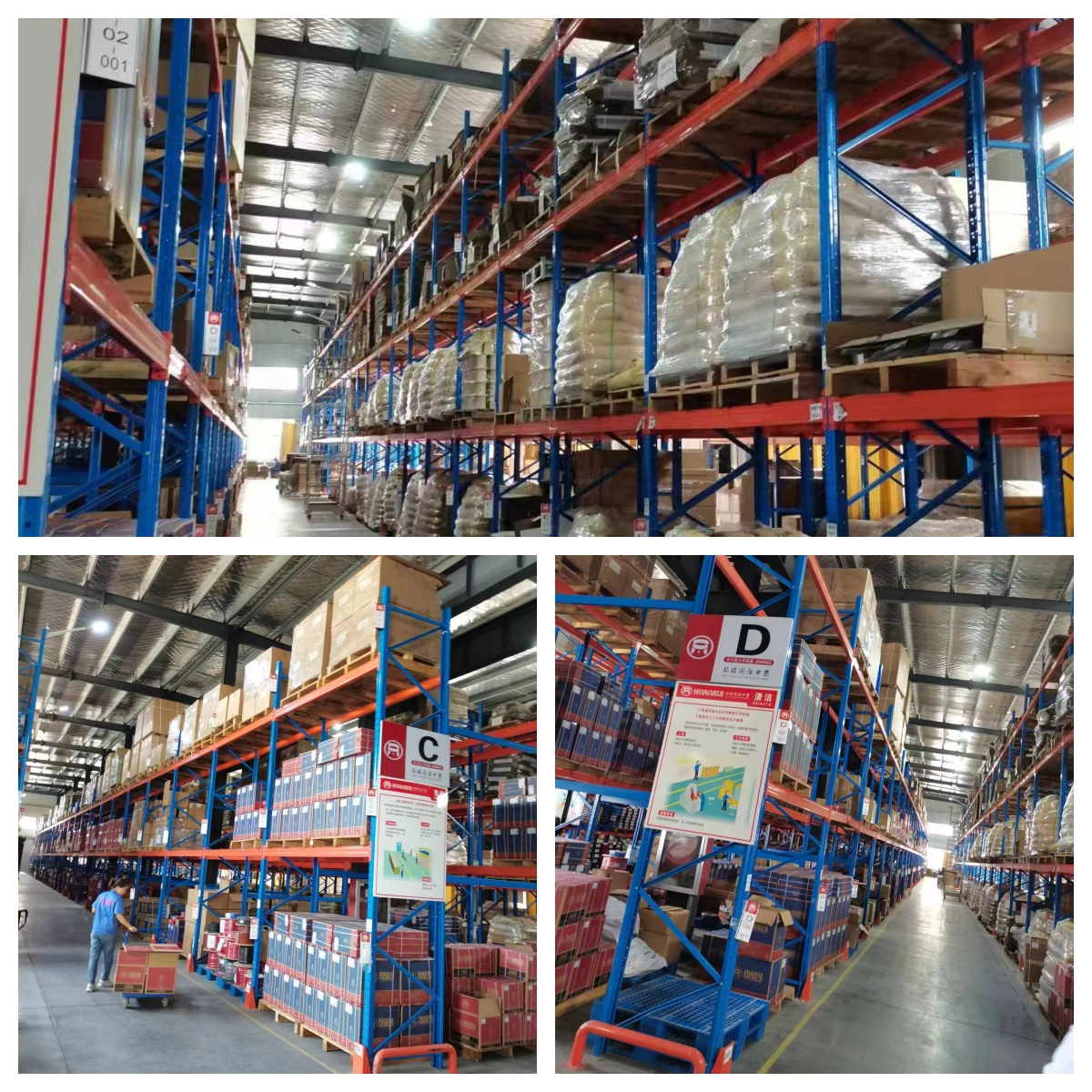

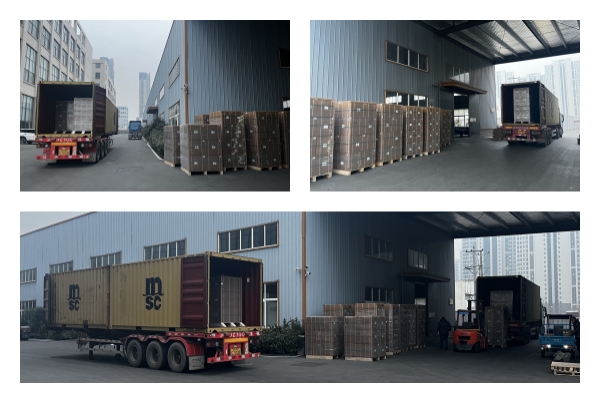

Anhui Huanrui packaging and shipping and over 5,000 square meters of usage area.
Anhui Huanrui participates in world-famous exhibitions every year, such as this AQUA-THERM MOSCOW, with more than 1,000,000 US dollars in transactions on the spot.
Product advantages 1.Durable and strong structure 2.High water-proofness. IP68 3.Long working life 4.25years warranty 5.Small size ,no increase in floor thickness 6.100% screened with Zero EMF 7.100% tested before delivery 8.Free of maintenance Features and applications: • Round-shape structure, flexible installation. • About 3.6 mm diameter, convenient for installation. • Twin conductor structure with one end cold lead for easy installation. • Zero EMF. • Can be used safely in wet conditions like bathroom. • Quick and easy installation. • Durable structure, long service life requiring no maintenance. • 15-year warranty for quality only, not including wrong installation and misuse. Warranty: 15 years limited warranty against defect in material, design and workmanship. 120V Length Heating area Total Power/W (3.65W/ft) Current/Amps Resistance Ω/m Part Number m ft 11W/ft² 14.5W/ft² HRVC-60-1 5.05 16.5 5.5 4.1 60 0.5 240.0 HRVC-120-1 10.1 33.0 10.9 8.3 120 1.0 120.0 HRVC-180-1 15.1 49.5 16.4 12.4 180 1.5 80.0 HRVC-240-1 20.1 66.0 21.8 16.6 240 2.0 60.0 HRVC-300-1 25.1 82.5 27.3 20.7 300 2.5 48.0 HRVC-360-1 30.2 99.0 32.7 24.8 360 3.0 40.0 HRVC-420-1 35.2 115.5 38.2 29.0 420 3.5 34.3 HRVC-480-1 40.2 132.0 43.6 33.1 480 4.0 30.0 HRVC-540-1 45.3 148.5 49.1 37.2 540 4.5 26.7 HRVC-600-1 50.3 165.0 54.5 41.4 600 5.0 24.0 HRVC-720-1 60.4 198.0 65.5 49.7 720 6.0 20.0 HRVC-840-1 70.4 231.0 76.4 57.9 840 7.0 17.1 HRVC-960-1 80.5 264.0 87.3 66.2 960 8.0 15.0 HRVC-1080-1 90.5 297.0 98.2 74.5 1080 9.0 13.3 HRVC-1200-1 100.5 330.0 109.1 82.8 1200 10.0 12.0 HRVC-1320-1 110.6 363.0 120.0 91.0 1320 11.0 10.9 HRVC-1440-1 120.7 396.0 130.9 99.3 1440 12.0 10.0 HRVC-1560-1 130.8 429.0 141.8 107.6 1560 13.0 9.2 HRVC-1680-1 140.8 462.0 152.7 115.9 1680 14.0 8.6 HRVC-1800-1 150.9 495.0 163.6 124.1 1800 15.0 8.0 240V Length Heating area Total Power/W (3.65W/ft) Current/Amps Resistance Ω/m Part Number m ft 11W/ft² 14.5W/ft² HRVC-120-2 10.1 33.0 10.9 8.3 120 0.5 480.0 HRVC-180-2 15.1 49.5 16.4 12.4 180 0.8 320.0 HRVC-240-2 20.2 66.0 21.8 16.6 240 1.0 240.0 HRVC-300-2 25.1 82.5 27.3 20.7 300 1.3 192.0 HRVC-360-2 30.2 99.0 32.7 24.8 360 1.5 160.0 HRVC-420-2 35.2 115.5 38.2 29.0 420 1.8 137.1 HRVC-480-2 40.2 132.0 43.6 33.1 480 2.0 120.0 HRVC-540-2 45.3 148.5 49.1 37.2 540 2.3 106.7 HRVC-600-2 50.2 165.0 54.5 41.4 600 2.5 96.0 HRVC-720-2 60.4 198.0 65.5 49.7 720 3.0 80.0 HRVC-840-2 70.4 231.0 76.4 57.9 840 3.5 68.6 HRVC-960-2 80.4 264.0 87.3 66.2 960 4.0 60.0 HRVC-1080-2 90.6 297.0 98.2 74.5 1080 4.5 53.3 HRVC-1200-2 100.6 330.0 109.1 82.8 1200 5.0 48.0 HRVC-1280-2 110.8 363.0 116.4 88.3 1280 5.3 45.0 HRVC-1440-2 120.8 396.0 130.9 99.3 1440 6.0 40.0 HRVC-1560-2 130.6 429.0 141.8 107.6 1560 6.5 36.9 HRVC-1680-2 140.8 462.0 152.7 115.9 1680 7.0 34.3 HRVC-1920-2 161.0 528.0 174.5 132.4 1920 8.0 30.0 HRVC-2160-2 181 594 196.4 149.0 2160 9.0 26.7 HRVC-2400-2 201 660 218.2 165.5 2400 10.0 24.0 HRVC-2640-2 221.2 726 240.0 182.1 2640 11.0 21.8 HRVC-2880-2 241.4 792 261.8 198.6 2880 12.0 20.0 HRVC-3120-2 261.6 858 283.6 215.2 3120 13.0 18.5 HRVC-3360-2 281.6 924 305.5 231.7 3360 14.0 17.1 HRVC-3600-2 301.8 990 327.3 248.3 3600 15.0 16.0 Herein, 1 and 2 means the operation voltage, “1”=120V, “2”=240V
