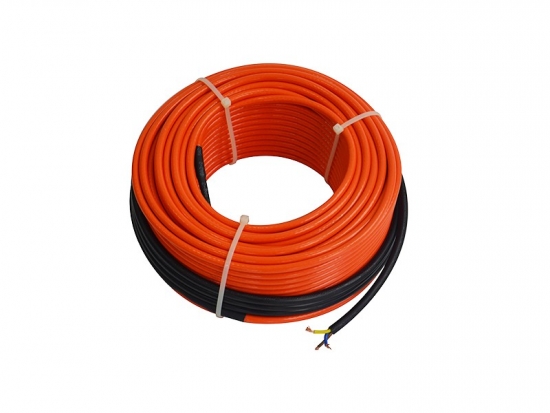

Hot Sale Resistance Floor Warming Electric Under floor Heating Cable

HRDVCM underfloor heating mat uses a twin conductor heating cable for easy installation, and mat is designed for installation into thin adhesive beds, leveling compounds or thin screed beds beneath tiled and wooden floor.

Maintenance temperature: 0-200 ℃ Temperature resistance: 600 ℃ Insulation material: customizable

Electric Underfloor Heating Cable HRVP3.65. With twisted structure, the cable is flexible and easy to install.

  The steel strip and fixer of a stainless steel belt and a regulating screw, which is used for fixing the explosion proof power supply connection box and other accessories in the pipeline.   It is for underfloor heating cable, make installation easier. Application   The steel strip and fixer of a stainless steel belt and a regulating screw, which is used for fixing the explosion proof power supply connection box and other accessories in the pipeline. The steel strip can be cut by 1.1 times the actual fixed length according to the diameter of the pipe. The front and back ends of the adjusting screw are respectively fixed in the small holes of the two ends, and the screw can be tightened. Self-regulating Heating Cable Steel Strapping of a stainless steel belt and a regulating screw, which is used for fixing the explosion proof power supply connection box and other accessories in the pipeline. The steel strip can be cut by 1.1 times the actual fixed length according to the diameter of the pipe. The front and back ends of the adjusting screw are respectively fixed in the small holes of the two ends, and the screw can be tightened.   We have two type of cable strapping, one for our T-cable(3.6mm), another for our I-cable(5.0mm)

Product advantages 1.Durable and strong structure 2.High water-proofness.  IP68 3.Long working life 4.25years warranty 5.Small size ,no increase in floor thickness 6.100% screened with Zero EMF 7.100% tested before delivery 8.Free of maintenance Features and applications: •    Round-shape structure, flexible installation. •    About 3.6 mm diameter, convenient for installation. •    Twin conductor structure with one end cold lead for easy installation. •    Zero EMF. •    Can be used safely in wet conditions like bathroom. •    Quick and easy installation. •    Durable structure, long service life requiring no maintenance. •    15-year warranty for quality only, not including wrong installation and misuse.   Warranty: 15 years limited warranty against defect in material, design and workmanship. 120V Length Heating area  Total Power/W  (3.65W/ft) Current/Amps Resistance Ω/m Part Number m ft 11W/ft² 14.5W/ft² HRVC-60-1 5.05 16.5 5.5 4.1 60 0.5 240.0 HRVC-120-1 10.1 33.0 10.9 8.3 120 1.0 120.0 HRVC-180-1 15.1 49.5 16.4 12.4 180 1.5 80.0 HRVC-240-1 20.1 66.0 21.8 16.6 240 2.0 60.0 HRVC-300-1 25.1 82.5 27.3 20.7 300 2.5 48.0 HRVC-360-1 30.2 99.0 32.7 24.8 360 3.0 40.0 HRVC-420-1 35.2 115.5 38.2 29.0 420 3.5 34.3 HRVC-480-1 40.2 132.0 43.6 33.1 480 4.0 30.0 HRVC-540-1 45.3 148.5 49.1 37.2 540 4.5 26.7 HRVC-600-1 50.3 165.0 54.5 41.4 600 5.0 24.0 HRVC-720-1 60.4 198.0 65.5 49.7 720 6.0 20.0 HRVC-840-1 70.4 231.0 76.4 57.9 840 7.0 17.1 HRVC-960-1 80.5 264.0 87.3 66.2 960 8.0 15.0 HRVC-1080-1 90.5 297.0 98.2 74.5 1080 9.0 13.3 HRVC-1200-1 100.5 330.0 109.1 82.8 1200 10.0 12.0 HRVC-1320-1 110.6 363.0 120.0 91.0 1320 11.0 10.9 HRVC-1440-1 120.7 396.0 130.9 99.3 1440 12.0 10.0 HRVC-1560-1 130.8 429.0 141.8 107.6 1560 13.0 9.2 HRVC-1680-1 140.8 462.0 152.7 115.9 1680 14.0 8.6 HRVC-1800-1 150.9 495.0 163.6 124.1 1800 15.0 8.0 240V Length Heating area   Total Power/W (3.65W/ft) Current/Amps Resistance Ω/m Part Number m ft 11W/ft² 14.5W/ft² HRVC-120-2 10.1 33.0 10.9 8.3 120 0.5 480.0 HRVC-180-2 15.1 49.5 16.4 12.4 180 0.8 320.0 HRVC-240-2 20.2 66.0 21.8 16.6 240 1.0 240.0 HRVC-300-2 25.1 82.5 27.3 20.7 300 1.3 192.0 HRVC-360-2 30.2 99.0 32.7 24.8 360 1.5 160.0 HRVC-420-2 35.2 115.5 38.2 29.0 420 1.8 137.1 HRVC-480-2 40.2 132.0 43.6 33.1 480 2.0 120.0 HRVC-540-2 45.3 148.5 49.1 37.2 540 2.3 106.7 HRVC-600-2 50.2 165.0 54.5 41.4 600 2.5 96.0 HRVC-720-2 60.4 198.0 65.5 49.7 720 3.0 80.0 HRVC-840-2 70.4 231.0 76.4 57.9 840 3.5 68.6 HRVC-960-2 80.4 264.0 87.3 66.2 960 4.0 60.0 HRVC-1080-2 90.6 297.0 98.2 74.5 1080 4.5 53.3 HRVC-1200-2 100.6 330.0 109.1 82.8 1200 5.0 48.0 HRVC-1280-2 110.8 363.0 116.4 88.3 1280 5.3 45.0 HRVC-1440-2 120.8 396.0 130.9 99.3 1440 6.0 40.0 HRVC-1560-2 130.6 429.0 141.8 107.6 1560 6.5 36.9 HRVC-1680-2 140.8 462.0 152.7 115.9 1680 7.0 34.3 HRVC-1920-2 161.0 528.0 174.5 132.4 1920 8.0 30.0 HRVC-2160-2 181 594 196.4 149.0 2160 9.0 26.7 HRVC-2400-2 201 660 218.2 165.5 2400 10.0 24.0 HRVC-2640-2 221.2 726 240.0 182.1 2640 11.0 21.8 HRVC-2880-2 241.4 792 261.8 198.6 2880 12.0 20.0 HRVC-3120-2 261.6 858 283.6 215.2 3120 13.0 18.5 HRVC-3360-2 281.6 924 305.5 231.7 3360 14.0 17.1 HRVC-3600-2 301.8 990 327.3 248.3 3600 15.0 16.0 Herein, 1 and 2 means the operation voltage, “1”=120V, “2”=240V

Maintain temperature: 0~600℃ Temperature resistance: 600~800℃ Insulating material: magnesium oxide MI cables are manufactured using a special production process using single or multiple alloy electric heating wires as the heating source, high-purity, high-temperature, fused crystallized magnesium oxide as the heat-conducting insulator, and seamless continuous stainless steel or copper tubes as the sheath. In places with strong corrosive effects, PE or low-smoke halogen-free jackets can be added.

FSR self-regulating heating cable is constructed of a semi-conductive heater matrix extruded between parallel bus wires, a self-regulating cable adjusts its output to independently respond to ambient temperatures all along its length.

Common voltage: 220V/380V Product classification: Electric heat tracing accessories The explosion-proof distribution box (cabinet) for electric heat tracing is made of aluminum alloy, electrostatic spray plastic, and complies with the explosion-proof regulations of GB3836.2-2000. It is used for the distribution of electric heat tracing products in Class II, Zone 1, and Zone 2 explosion-proof areas. It has overload, single phase, and three-phase two categories, and outputs 1-12 circuits. There are two types of temperature control: fractional display temperature controller and BJW type temperature controller. Anhui huanrui electrical conduit with thermal control and monitoring system will be widely used in the fire pipes, pumps, valves, tank and tank container with heat, anti freezing and anti coagulation, and other heat tracing system. In addition, traffic, petroleum, chemical, electric power, medicine, machinery, food, shipping and other fields, can play a huge role. The real intelligent control can be realized with the current electric heat tracing system.
