Underfloor Heat Mat HRDVTF
Home / Underfloor Heating Cable And Mat / Underfloor Heating Mat / Underfloor Heat Mat HRDVTF /

Underfloor Living Room Warm Systems For Home Floor Heating Mat

Constant Wattage Heating Mat

Underfloor Living Room Warm Systems For Home Floor Heating Mat

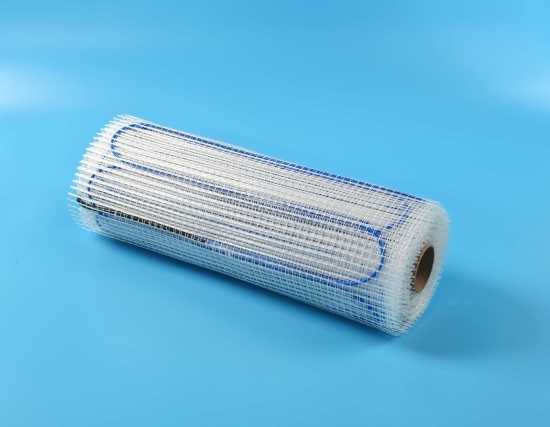

HRDVTF underfloor heating mat uses a twin conductor heating cable for easy installation, and mat is designed for installation into thin adhesive beds, leveling compounds or thin screed beds beneath tiled and wooden floor.

  • Brand:

    Huanrui
  • Power Ouput:

    60W/m2,100W/m2,130W/m2,160W/m2
  • Rated Voltage:

    230V
  • Outer Jacket:

    PVC
  • Outer dimensions:

    3.6mm
  • Insulation material:

    Fluoropolymer
  • Cable structure:

    Twin conductor
  • Conductor:

    Solid heating core
  • Connector:

    Out splice
  • Resistance tolerance:

    +10%/-5%
  • Certifications:

    CE

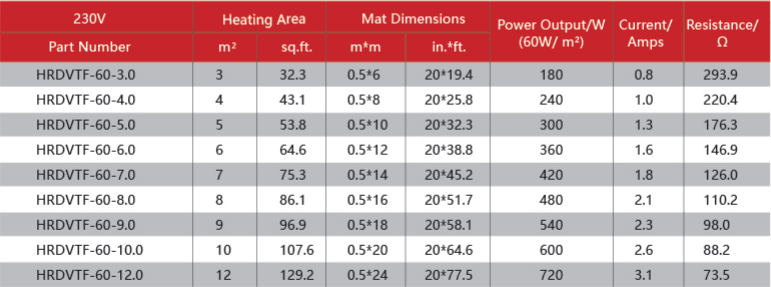

  60w/m2 underfloor heating mats are suitable as a primary heating source providing you adequate insulation. These are our most commonly used mats for kitchens, dining rooms, and most other areas with tiled floors, where is no requirement for too much heating quantity .

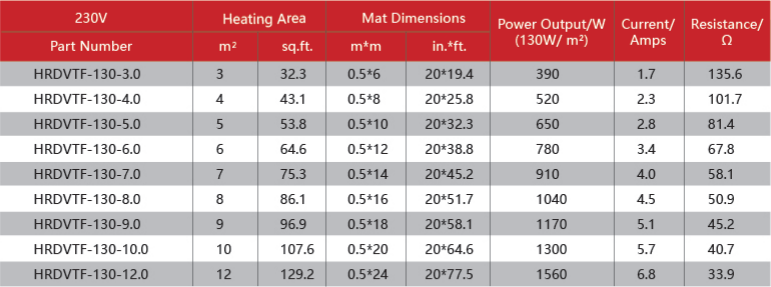

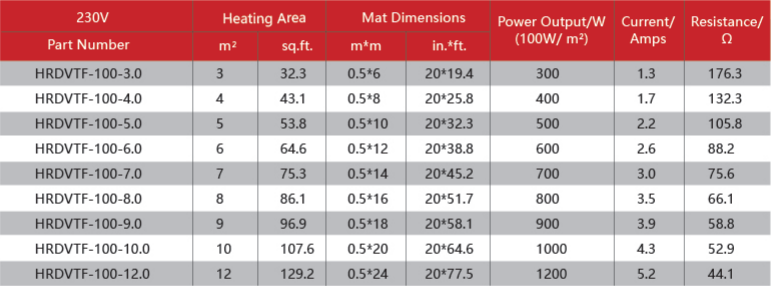

  100w/m2 & 130w/m2 underfloor heating mats are suitable as a primary heating source providing you adequate insulation. These are our most commonly used mats for kitchens, dining rooms, large bathrooms and most other areas with tiled floors.

  160w/m2 underfloor heating mats are generally used in areas where high heat loss is a problem, such as conservatories. These mats are only suitable under tiled floors, giving a 25% faster warm up time.



Product advantages

1.Durable and strong structure

2.High water-proofness.  IP68

3.Long working life

4.25years warranty

5.Small size ,no increase in floor thickness

6.100% screened with Zero EMF

7.100% tested before delivery

8.Free of maintenance



* Self-adhesive mat

* One cold lead, 2.5 meters

* Flexible and 100% screened

* Twin conductor heating cable
