Brand:
HuanruiPower Ouput:
150W/m2,200W/m2Min. Installation Temperature:
5°CRated Voltage:
220-230VOuter Jacket:
FEPInsulation material:
FEPApplicable areas :
EuropeApplication:
Residential floor warmingMin.bending radius:
6DCertifications:
CE EAC TUV
Product advantages
1.Durable and strong structure
2.High water-proofness. IP68
3.Long working life
4.25years warranty
5.Small size ,no increase in floor thickness
6.100% screened with Zero EMF
7.100% tested before delivery
8.Free of maintenance
Features and applications
• Residential indoor electric underfloor heating cable.
• Can be used in humid places, such as bathroom.
• It is applicable for flooring material like concrete, ceramic tile, marble, wood.
• Easy installation for indoor whole and partial warming systems for floor and wall warming.
• 3.0*2.0mm in diameter, lower height, cost-saving.
|
Part Number
Heating Area
/ m2
Mat Dimensions
/ m*m
Output Power
/ W (150W/m2)
Current
/ Amps
Resistance
/ Ω
UT-mat150-150
1
0.5*2
150
0.7
352.7
UT-mat150-225
1.5
0.5*3
225
1
235.1
UT-mat150-300
2
0.5*4
300
1.3
176.3
UT-mat150-375
2.5
0.5*5
375
1.6
141.1
UT-mat150-450
3
0.5*6
450
2
117.6
UT-mat150-525
3.5
0.5*7
525
2.3
100.8
UT-mat150-600
4
0.5*8
600
2.6
88.2
UT-mat150-675
4.5
0.5*9
675
2.9
78.4
UT-mat150-750
5
0.5*10
750
3.3
70.5
UT-mat150-900
6
0.5*12
900
3.9
58.8
UT-mat150-1050
7
0.5*14
1050
4.6
50.4
UT-mat150-1200
8
0.5*16
1200
5.2
44.1
UT-mat150-1350
9
0.5*18
1350
5.9
39.2
UT-mat150-1500
10
0.5*20
1500
6.5
35.3
UT-mat150-1800
12
0.5*24
1800
7.8
29.4
|
|
Part Number |
Heating Area m2 |
Mat Dimensions m*m |
Output Power / W (200W/m2) |
Current / Amps |
Resistance / Ω |
|
UT-mat200-200 |
1 |
0.5*2 |
200 |
0.9 |
264.5 |
|
UT-mat200-300 |
1.5 |
0.5*3 |
300 |
1.3 |
176.3 |
|
UT-mat200-400 |
2 |
0.5*4 |
400 |
1.7 |
132.3 |
|
UT-mat200-500 |
2.5 |
0.5*5 |
500 |
2.2 |
105.8 |
|
UT-mat200-600 |
3 |
0.5*6 |
600 |
2.6 |
88.2 |
|
UT-mat200-700 |
3.5 |
0.5*7 |
700 |
3 |
75.6 |
|
UT-mat200-800 |
4 |
0.5*8 |
800 |
3.5 |
66.1 |
|
UT-mat200-900 |
4.5 |
0.5*9 |
900 |
3.9 |
58.8 |
|
UT-mat200-1000 |
5 |
0.5*10 |
1000 |
4.3 |
52.9 |
|
UT-mat200-1200 |
6 |
0.5*12 |
1200 |
5.2 |
44.1 |
|
UT-mat200-1400 |
7 |
0.5*14 |
1400 |
6.1 |
37.8 |
|
UT-mat200-1600 |
8 |
0.5*16 |
1600 |
7 |
33.1 |
|
UT-mat200-1800 |
9 |
0.5*18 |
1800 |
7.8 |
29.4 |
|
UT-mat200-2000 |
10 |
0.5*20 |
2000 |
8.7 |
26.5 |
|
UT-mat200-2400 |
12 |
0.5*24 |
2400 |
10.4 |
22 |
T-mat underfloor heating mat uses a twin conductor heating cable for easy installation, and this mat is with zero EMF, designed for installation into thin adhesive beds, leveling compounds or thin screed beds beneath tiled and wooden floor.
Learn More
Electric Underfloor Heating Cable HRWT3.2. With twisted structure, the cable is flexible and easy to install.
Learn More
Product advantages 1.Durable and strong structure 2.High water-proofness. IP68 3.Long working life 4.25years warranty 5.Small size ,no increase in floor thickness 6.100% screened with Zero EMF 7.100% tested before delivery 8.Free of maintenance Features and applications: • Round-shape structure, flexible installation. • About 3.6 mm diameter, convenient for installation. • Twin conductor structure with one end cold lead for easy installation. • Zero EMF. • Can be used safely in wet conditions like bathroom. • Quick and easy installation. • Durable structure, long service life requiring no maintenance. • 15-year warranty for quality only, not including wrong installation and misuse. Warranty: 15 years limited warranty against defect in material, design and workmanship. 120V Length Heating area Total Power/W (3.65W/ft) Current/Amps Resistance Ω/m Part Number m ft 11W/ft² 14.5W/ft² HRVC-60-1 5.05 16.5 5.5 4.1 60 0.5 240.0 HRVC-120-1 10.1 33.0 10.9 8.3 120 1.0 120.0 HRVC-180-1 15.1 49.5 16.4 12.4 180 1.5 80.0 HRVC-240-1 20.1 66.0 21.8 16.6 240 2.0 60.0 HRVC-300-1 25.1 82.5 27.3 20.7 300 2.5 48.0 HRVC-360-1 30.2 99.0 32.7 24.8 360 3.0 40.0 HRVC-420-1 35.2 115.5 38.2 29.0 420 3.5 34.3 HRVC-480-1 40.2 132.0 43.6 33.1 480 4.0 30.0 HRVC-540-1 45.3 148.5 49.1 37.2 540 4.5 26.7 HRVC-600-1 50.3 165.0 54.5 41.4 600 5.0 24.0 HRVC-720-1 60.4 198.0 65.5 49.7 720 6.0 20.0 HRVC-840-1 70.4 231.0 76.4 57.9 840 7.0 17.1 HRVC-960-1 80.5 264.0 87.3 66.2 960 8.0 15.0 HRVC-1080-1 90.5 297.0 98.2 74.5 1080 9.0 13.3 HRVC-1200-1 100.5 330.0 109.1 82.8 1200 10.0 12.0 HRVC-1320-1 110.6 363.0 120.0 91.0 1320 11.0 10.9 HRVC-1440-1 120.7 396.0 130.9 99.3 1440 12.0 10.0 HRVC-1560-1 130.8 429.0 141.8 107.6 1560 13.0 9.2 HRVC-1680-1 140.8 462.0 152.7 115.9 1680 14.0 8.6 HRVC-1800-1 150.9 495.0 163.6 124.1 1800 15.0 8.0 240V Length Heating area Total Power/W (3.65W/ft) Current/Amps Resistance Ω/m Part Number m ft 11W/ft² 14.5W/ft² HRVC-120-2 10.1 33.0 10.9 8.3 120 0.5 480.0 HRVC-180-2 15.1 49.5 16.4 12.4 180 0.8 320.0 HRVC-240-2 20.2 66.0 21.8 16.6 240 1.0 240.0 HRVC-300-2 25.1 82.5 27.3 20.7 300 1.3 192.0 HRVC-360-2 30.2 99.0 32.7 24.8 360 1.5 160.0 HRVC-420-2 35.2 115.5 38.2 29.0 420 1.8 137.1 HRVC-480-2 40.2 132.0 43.6 33.1 480 2.0 120.0 HRVC-540-2 45.3 148.5 49.1 37.2 540 2.3 106.7 HRVC-600-2 50.2 165.0 54.5 41.4 600 2.5 96.0 HRVC-720-2 60.4 198.0 65.5 49.7 720 3.0 80.0 HRVC-840-2 70.4 231.0 76.4 57.9 840 3.5 68.6 HRVC-960-2 80.4 264.0 87.3 66.2 960 4.0 60.0 HRVC-1080-2 90.6 297.0 98.2 74.5 1080 4.5 53.3 HRVC-1200-2 100.6 330.0 109.1 82.8 1200 5.0 48.0 HRVC-1280-2 110.8 363.0 116.4 88.3 1280 5.3 45.0 HRVC-1440-2 120.8 396.0 130.9 99.3 1440 6.0 40.0 HRVC-1560-2 130.6 429.0 141.8 107.6 1560 6.5 36.9 HRVC-1680-2 140.8 462.0 152.7 115.9 1680 7.0 34.3 HRVC-1920-2 161.0 528.0 174.5 132.4 1920 8.0 30.0 HRVC-2160-2 181 594 196.4 149.0 2160 9.0 26.7 HRVC-2400-2 201 660 218.2 165.5 2400 10.0 24.0 HRVC-2640-2 221.2 726 240.0 182.1 2640 11.0 21.8 HRVC-2880-2 241.4 792 261.8 198.6 2880 12.0 20.0 HRVC-3120-2 261.6 858 283.6 215.2 3120 13.0 18.5 HRVC-3360-2 281.6 924 305.5 231.7 3360 14.0 17.1 HRVC-3600-2 301.8 990 327.3 248.3 3600 15.0 16.0 Herein, 1 and 2 means the operation voltage, “1”=120V, “2”=240V
Learn More

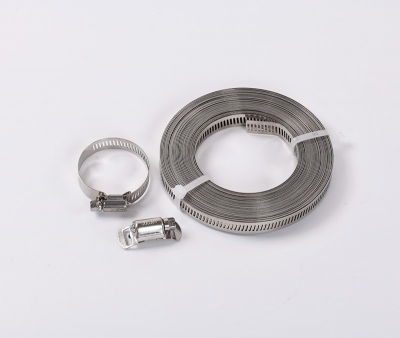

The steel strip and fixer of a stainless steel belt and a regulating screw, which is used for fixing the explosion proof power supply connection box and other accessories in the pipeline. Application The steel strip and fixer of a stainless steel belt and a regulating screw, which is used for fixing the explosion proof power supply connection box and other accessories in the pipeline. The steel strip can be cut by 1.1 times the actual fixed length according to the diameter of the pipe. The front and back ends of the adjusting screw are respectively fixed in the small holes of the two ends, and the screw can be tightened. Self-regulating Heating Cable Steel Strapping of a stainless steel belt and a regulating screw, which is used for fixing the explosion proof power supply connection box and other accessories in the pipeline. The steel strip can be cut by 1.1 times the actual fixed length according to the diameter of the pipe. The front and back ends of the adjusting screw are respectively fixed in the small holes of the two ends, and the screw can be tightened. We have two type of cable strapping, one for our T-cable(3.6mm), another for our I-cable(5.0mm)
