Brand:
HuanruiPower Ouput:
150W/m2,200W/m2Max. Maintain Temperature:
Max. Exposure Temperature:
Min. Installation Temperature:
5°CRated Voltage:
220-230VMax. Resistance of Braid:
Max. Current Length/16A Breaker:
Max. Ambient Temperature:
Max. withstand temperature:
Bus Wire Gauge:
Outer Jacket:
Dielectric strength:
Outer dimensions:
Insulation resistance:
Insulation optional:
Insulation material:
Protection Class:
Applicable areas :
EuropeApplication:
Residential floor warmingMin.bending radius:
6DCable structure:
Heating element length:
Heating element size:
Bending radius:
Jacket optional:
Nylon for UT-cable(A)Shield:
Max. rated temperature:
Cold lead:
Conductor:
Connector:
Outer sheath Max temperature:
Resistance tolerance:
Total power consumption:
Size:
Cable spacing:
Cable length:
Cable diameter:
Conductor insulation:
Certifications:
CE EAC TUVColor:
Product Orgin:
Lead Time:
Brand:
Shipping Port:
Payment:
Product advantages
1.Durable and strong structure
2.High water-proofness. IP68
3.Long working life
4.25years warranty
5.Small size ,no increase in floor thickness
6.100% screened with Zero EMF
7.100% tested before delivery
8.Free of maintenance
Features and applications

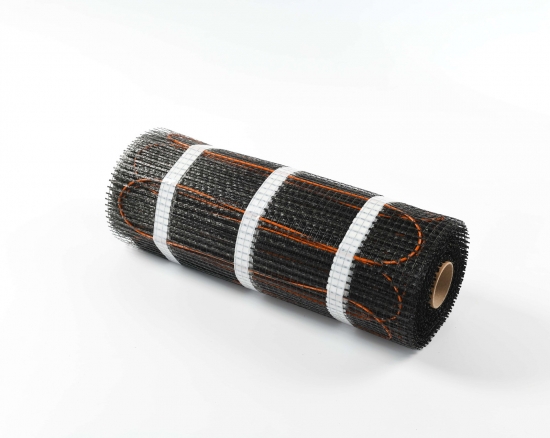

• Residential indoor electric underfloor heating cable.
• Can be used in humid places, such as bathroom.
• It is applicable for flooring material like concrete, ceramic tile, marble, wood.
• Easy installation for indoor whole and partial warming systems for floor and wall warming.
• 3.0*2.0mm in diameter, lower height, cost-saving.
|
Part Number
Heating Area
/ m2
Mat Dimensions
/ m*m
Output Power
/ W (150W/m2)
Current
/ Amps
Resistance
/ Ω
UT-mat150-150
1
0.5*2
150
0.7
352.7
UT-mat150-225
1.5
0.5*3
225
1
235.1
UT-mat150-300
2
0.5*4
300
1.3
176.3
UT-mat150-375
2.5
0.5*5
375
1.6
141.1
UT-mat150-450
3
0.5*6
450
2
117.6
UT-mat150-525
3.5
0.5*7
525
2.3
100.8
UT-mat150-600
4
0.5*8
600
2.6
88.2
UT-mat150-675
4.5
0.5*9
675
2.9
78.4
UT-mat150-750
5
0.5*10
750
3.3
70.5
UT-mat150-900
6
0.5*12
900
3.9
58.8
UT-mat150-1050
7
0.5*14
1050
4.6
50.4
UT-mat150-1200
8
0.5*16
1200
5.2
44.1
UT-mat150-1350
9
0.5*18
1350
5.9
39.2
UT-mat150-1500
10
0.5*20
1500
6.5
35.3
UT-mat150-1800
12
0.5*24
1800
7.8
29.4
|
|
Part Number |
Heating Area m2 |
Mat Dimensions m*m |
Output Power / W (200W/m2) |
Current / Amps |
Resistance / Ω |
|
UT-mat200-200 |
1 |
0.5*2 |
200 |
0.9 |
264.5 |
|
UT-mat200-300 |
1.5 |
0.5*3 |
300 |
1.3 |
176.3 |
|
UT-mat200-400 |
2 |
0.5*4 |
400 |
1.7 |
132.3 |
|
UT-mat200-500 |
2.5 |
0.5*5 |
500 |
2.2 |
105.8 |
|
UT-mat200-600 |
3 |
0.5*6 |
600 |
2.6 |
88.2 |
|
UT-mat200-700 |
3.5 |
0.5*7 |
700 |
3 |
75.6 |
|
UT-mat200-800 |
4 |
0.5*8 |
800 |
3.5 |
66.1 |
|
UT-mat200-900 |
4.5 |
0.5*9 |
900 |
3.9 |
58.8 |
|
UT-mat200-1000 |
5 |
0.5*10 |
1000 |
4.3 |
52.9 |
|
UT-mat200-1200 |
6 |
0.5*12 |
1200 |
5.2 |
44.1 |
|
UT-mat200-1400 |
7 |
0.5*14 |
1400 |
6.1 |
37.8 |
|
UT-mat200-1600 |
8 |
0.5*16 |
1600 |
7 |
33.1 |
|
UT-mat200-1800 |
9 |
0.5*18 |
1800 |
7.8 |
29.4 |
|
UT-mat200-2000 |
10 |
0.5*20 |
2000 |
8.7 |
26.5 |
|
UT-mat200-2400 |
12 |
0.5*24 |
2400 |
10.4 |
22 |
T-cable underfloor heating cable is designed to be as thin as possible, diameter is only 3.6mm.
