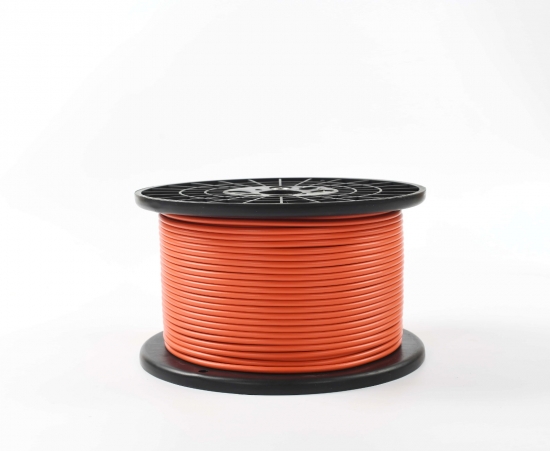

l-cable underfloor heating cable is designed for new buildings applications or any other circumstances where screed is going to be laid, l-cable is a twin conductor heating cable for easy installation with zero EMF.
Brand:
HuanruiPower Ouput:
20W/mRated Voltage:
230VOuter Jacket:
PVCOuter dimensions:
5.0-5.8mmInsulation material:
Fluoropolymer/TPEECable structure:
Twin conductorJacket optional:
LSZHShield:
Aluminum-plastic tape or tinned copper wires/Tinned copper braidConductor:
Solid heating coreConnector:
Out spliceResistance tolerance:
+10%/-5%Certifications:
CE TUV EACI-cable is a heating cable designed for new buildings applications or any other circumstances where screed is going to be laid.This system is usually installed on top of a layer of insulation beneath a 50-70 mm screed and the output can be varied when being installed to accommodate your specific circumstances.If an output of 160 W/m² is choosed, then any floor covering can be laid on top of the screed, making this a suitable system to install when final floor coverings have not been applied.
Product advantages
1.Durable and strong structure
2.High water-proofness. IP68
3.Long working life
4.25years warranty
5.Small size ,no increase in floor thickness
6.100% screened with Zero EMF
7.100% tested before delivery
8.Free of maintenance
* Twin conductor heating cable
* 100% screened
* One cold lead, 2.5 meters
* Zero EMF
* DIY installation
|
Part Number |
Rated Voltage/V |
Length/m |
Output Power/W |
Resistance/Ω |
|
I-cable20-200 |
230 |
10 |
200 |
264.5 |
|
I-cable20-300 |
230 |
15 |
300 |
176.3 |
|
I-cable20-400 |
230 |
20 |
400 |
132.3 |
|
I-cable20-500 |
230 |
25 |
500 |
105.8 |
|
I-cable20-600 |
230 |
30 |
600 |
88.2 |
|
I-cable20-700 |
230 |
35 |
700 |
75.6 |
|
I-cable20-850 |
230 |
42.5 |
850 |
62.2 |
|
I-cable20-1000 |
230 |
50 |
1000 |
52.9 |
|
I-cable20-1200 |
230 |
60 |
1200 |
44.1 |
|
I-cable20-1400 |
230 |
70 |
1400 |
37.8 |
|
I-cable20-1600 |
230 |
80 |
1600 |
33.1 |
|
I-cable20-1800 |
230 |
90 |
1800 |
29.4 |
|
I-cable20-2000 |
230 |
100 |
2000 |
26.5 |
|
I-cable20-2200 |
230 |
110 |
2200 |
24 |
|
I-cable20-2400 |
230 |
120 |
2400 |
22 |
|
I-cable20-2600 |
230 |
130 |
2600 |
20.3 |
|
I-cable20-2800 |
230 |
140 |
2800 |
18.9 |
|
I-cable20-3100 |
230 |
155 |
3100 |
17.1 |
Certificate:
Our I-cable has already got CE TUV EAC certificate, and we can apply OEM service.
