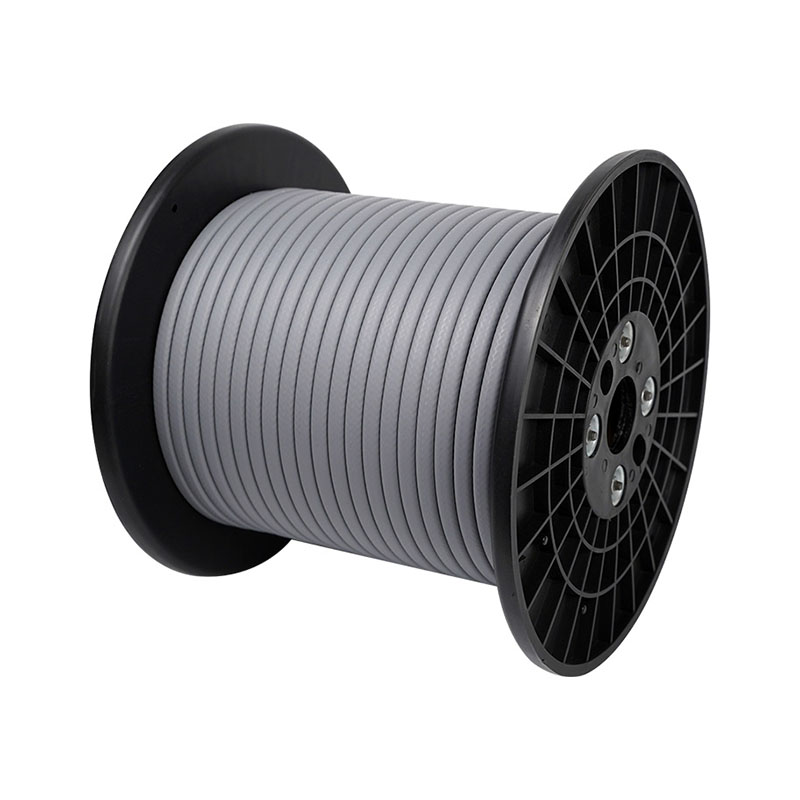

LSR
LSR is ideally used for process temperature maintenance and frost protection of regular diameter pipelines, tanks, valves, flanges, roof & gutter de-icing, snow melting and other applications of low temperature working conditions . LSR self-regulating heating cables provide the most versatility in heat trace designs and applications.
This product has been used for over 1000,000 meters in our company’s key partners, PetroChina, CNOOC,Sinopec,China Aerospace,Wanhua Chemical and other global Fortune 500 companies.
LSR Series:
LSR: Flame retardant thermoplastic outer insulation jacket protects against certain inorganic chemical solutions, it also protects against abrasion and impact damage.
LSR-P: Tinned copper braid provides additional mechanical and ground protection.
LSR-PB: Flame retardant thermoplastic outer jacket protects against certain inorganic chemical solutions, it also protects against abrasion and impact damage.
LSR-PF: Fluoropolymer outer jacket is used for exposure to organic or corrosive working conditions.
Feature
|
|
|
Technical data
|
|
|
| LSR Series | Output power @+10°C (W/m) | Maximum maintain temperature (°C) | Max length @+10°C 16/30A (m) | Max length @0°C 16/30A (m) | Max length @-20°C 16/30A (m) | Dimension (mm) | Weight (kg/100m) |
| 10LSR | 10 | 65 | 163/203 | 143/183 | 113/183 | 0.7×4.5 | 7.25 |
| 10LSR-PB / 10LSR-PF | 10 | 65 | 163/203 | 143/183 | 113/183 | 12.8×5.8 | 11.5 |
| 16LSR | 16 | 65 | 110/151 | 100/124 | 86/98 | 0.7×4.5 | 7.25 |
| 16LSR-PB / 16LSR-PF | 16 | 65 | 110/151 | 100/124 | 86/98 | 12.8×5.8 | 11.5 |
| 24LSR | 24 | 65 | 89/118 | 75/94 | 63/80 | 10.7×4.5 | 7.25 |
| 24LSR-PB / 24LSR-PF | 24 | 65 | 89/118 | 75/94 | 63/80 | 12.8×5.8 | 11.5 |
| 30LSR | 30 | 65 | 71/98 | 60/77 | 52/65 | 10.7×4.5 | 7.25 |
| 30LSR-PB / 30LSR-PF | 30 | 65 | 71/98 | 60/77 | 52/65 | 12.8×5.8 | 11.5 |
| 40LSR | 40 | 65 | 62/72 | 52/60 | 45/53 | 10.7×4.5 | 7.25 |
| 40LSR-PB / 40LSR-PF | 40 | 65 | 62/72 | 52/60 | 45/53 | 12.8×5.8 | 11.5 |
