Roof and Gutter De-icing by Self-regulating Heating Cable

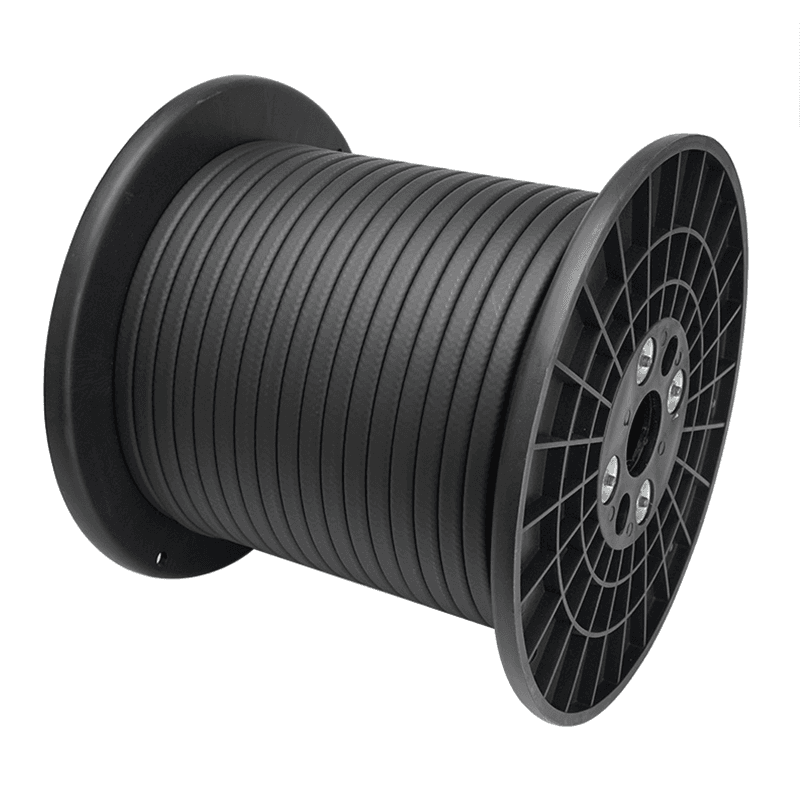

Name: Roof and Gutter De-icing by Self-regulating Heating Cable
Availability: InStock

Home Products Application Industrial Heat Tracing

RSR(EU/North America)

RSR is designed for pipe heat trace in industrial applications. It is ideally used for process temperature maintenance and frost protection of large diameter pipelines, tanks, valves, flanges and other applications of high heat loss issues. It is suitable for non-hazardous area, and cable with fluoropolymer outer jacket can also be used in hazardous area and corrosive area.

RSR Series

RSR-P: Tinned copper braid provides additional mechanical and ground protection.

RSR-PF: Fluoropolymer outer jacket is used for exposure to organic or corrosive working conditions or vapor may exist.

PSR-PB: Flame retardant thermoplastic outer jacket protects against certain inorganic chemical solutions, it also protects against abrasion and impact damage.

Inquiry now

Feature

Low Starting Current: <0.3A/M, starting current to steady-state current ratio <3 times.
High Temperature Resistance and Safety: Withstands 100-110°C, enhancing operational safety.
Flexible and Convenient: Overlapping does not exceed temperature limits, can be cut to any size, and is easy to install.

Superior Insulation: Excellent material compatibility, weather-resistant and high-temperature resistant, insulation resistance >2000MΩ.
Seamless and Durable: Multi-layer co-extrusion process integrates the insulation layer with the heating matrix, providing moisture and impurity protection and extending lifespan.

Technical data

Power output 10, 17,25,31,40 (W/m)
Rated voltage 110V-120V/220V-240V
Maximum maintain temperature 65°C
Maximum exposure temperature 85°C
Minimum installation temperature -60°C

Bus wire gauge 16AWG
RSR-P Tinned copper metal braid
RSR-PB Thermoplastic outer jacket
RSR-PF Fluoropolymer outer jacket
Max resistance of braid ≤18.20/km

RSR Series	Output power @+10℃ (W)	Maximum maintain temperature (℃)	Max length @+10℃ 16/30A (mm)	Max length @+10℃ 16/30A (mm)	Max length @+20℃ 16/30A (mm)	Dimension (mm)	Weight (kg/100m)
10RSR - PB	10	65	150/220	120/180	90/140	13.3×6.0	12.9
10RSR - PF	10	65	150/220	120/180	90/140	12.7×5.6	11.5
17RSR - PB	17	65	120/170	90/130	70/100	13.3×6.0	12.9
17RSR - PF	17	65	120/170	90/130	70/100	12.7×5.6	12.4
25RSR - PB	25	65	100/140	75/105	60/85	13.3×6.0	12.9
25RSR - PF	25	65	100/140	75/105	60/85	12.7×5.6	12.4
31RSR - PB	31	65	85/120	65/95	55/75	13.3×6.0	12.9
31RSR - PF	31	65	85/120	65/95	55/75	12.7×5.6	12.4
40RSR - PB	40	65	70/95	60/80	50/70	13.3×6.0	12.9
40RSR - PF	40	65	70/95	60/80	50/70	12.7×5.6	12.4

Feature

Low Starting Current: <0.3A/M, starting current to steady-state current ratio <3 times.
High Temperature Resistance and Safety: Withstands 100-110°C, enhancing operational safety.
Flexible and Convenient: Overlapping does not exceed temperature limits, can be cut to any size, and is easy to install.

Superior Insulation: Excellent material compatibility, weather-resistant and high-temperature resistant, insulation resistance >2000MΩ.
Seamless and Durable: Multi-layer co-extrusion process integrates the insulation layer with the heating matrix, providing moisture and impurity protection and extending lifespan.

Technical data

Rated voltage 120V/240V
Maximum maintain temperature 65°C(149°F)
Maximum exposure temperature 85°C(185°F)
Minimum installation temperature -60C

Power output 3, 5,6,8,10,12 (W/ft)
RSR-PB Thermoplastic outer jacket
Max resistance of braid ≤18.2Q/km
Bus wire gauge 16AWG

Heating cable mode	Voltage, AC 60 Hz	Power at 10 °C (50 °F), W/ft	Max length, ft, @10 °C (50 °F) 20/30A	Max length, ft, @0 °C (32 °F) 20/30A	Max length, ft, @ - 20 °C (- 4 °F) 20/30A
3RSR1 - PB	120	3	248/363	200/300	200/220
3RSR2 - PB	240	3	495/726	400/600	400/440
5RSR1 - PB	120	5	190/230	160/215	140/200
5RSR2 - PB	240	5	380/460	320/430	280/400
6RSR1 - PB	120	6	165/210	125/170	110/140
6RSR2 - PB	240	6	330/420	250/340	220/280
8RSR1 - PB	120	8	140/200	110/140	100/125
8RSR2 - PB	240	8	280/400	220/290	200/240
10RSR1 - PB	120	10	120/180	105/135	90/100
10RSR2 - PB	240	10	240/360	200/280	180/250
12RSR1 - PB	120	12	100/150	90/130	70/90
12RSR2 - PB	240	12	200/300	180/260	160/210
