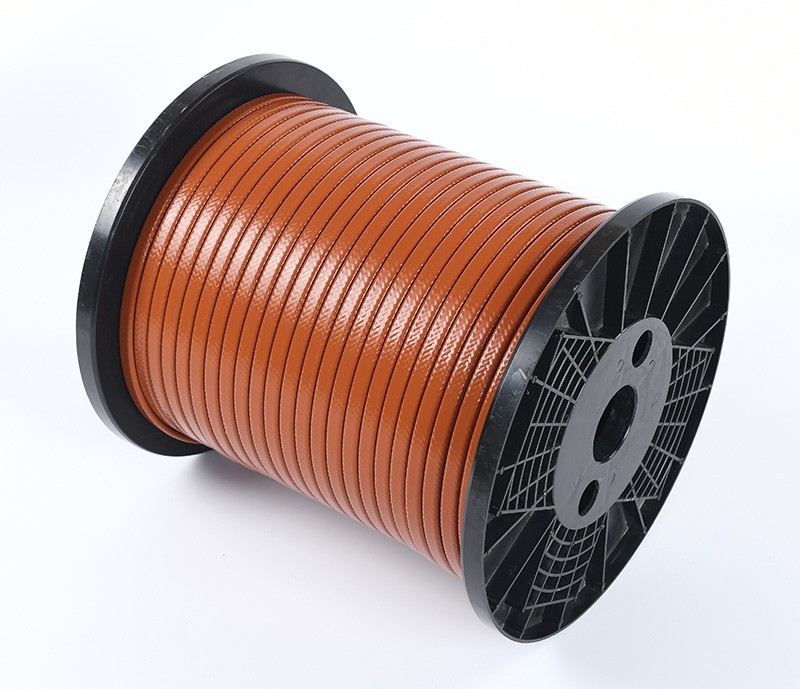

SSR
Constructed of a semi-conductive heater matrix extruded between parallel bus wires, a self-regulating cable adjusts its output to independently respond to ambient temperatures all along its length.SSR self-regulating heating cables provide the most versatility in heat trace designs and applications.
Application
SSR is ideally used for process temperature maintenance and frost protection of large diameter pipelines, tanks, valves, flanges, and other industrial applications of high heat loss issues. It is suitable for non-hazardous area, and cable with fluoropolymer outer jacket can also be used in hazardous area and corrosive area.
SSR Series
SSR-P: Tinned copper braid provides additional mechanical and ground protection.
SSR-PB: Flame retardant thermoplastic outer jacket protects against certain inorganic chemical solutions, it also protects against abrasion and impact damage.
SSR-PF: Fluoropolymer outer jacket is used for exposure to organic or corrosive working conditions or vapor may exist.
The unique advantages of Huanrui self-regulating heating cable:
Technical data
|
|
|
| SSR Series | Output power @10°C (W/m) | Maximum maintain temperature (°C) | Max length @10°C 16/30A (m) | Max length @0°C 16/30A (m) | Max length @-20°C 16/30A (m) | Dimension (mm) | Weight (kg/100m) |
| 35SSR-PF/35SSR-PB | 35 | 110 | 75/100 | 65/90 | 45/60 | 13.3×6.1 | 12.5 |
| 45SSR-PF/45SSR-PB | 45 | 110 | 60/85 | 50/75 | 35/50 | 13.3×6.1 | 12.5 |
| 60SSR-PF/60SSR-PB | 60 | 110 | 50/70 | 40/60 | 30/45 | 13.3×6.1 | 12.5 |
