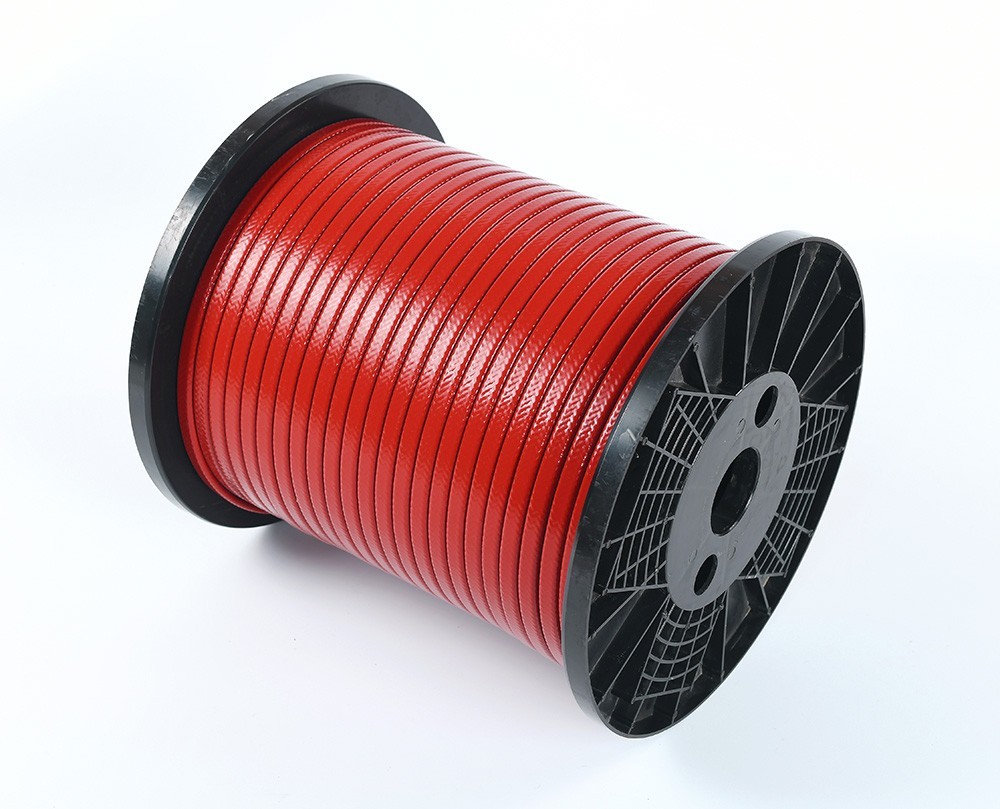

XBR
XBR self-regulating heating cables provides the most versatility in heat trace designs and applications.With Fluoropolymer material for inner insulation andouter jacket , the heating cable is resistant to watery and inorganic chemicals and protected against abrasion and impacted damage.
XBR series self-regulating heating cables are suitable for defrosting and temperature maintenance of pipes, tanks, valves, flanges and heating requests that requi re high power output. Also suitable for applications in explosion-proof and corrosive environments. The XBR series self-regulating heating cable can withstand the highest exposure temperature up to 200℃ (392℉), and the highest maintain temperature can reach 120℃ (248℉)
This product has been used for over 100,000 meters in our company’s key partners, PetroChina, CNOOC,Sinopec,China Aerospace,Wanhua Chemical and other global Fortune 500 companies.
Feature
|
|
Technical data
|
|
| XBR Series | Output power @10°C (W/m) | Maximum maintain temperature (°C) | Max length @10°C 16/32A (m) | Max length @0°C 16/32A (m) | Dimension (For Reference) | Weight (For Reference) |
| 15XBR-220-PB | 15 | 120 | 165/200 | 117/189 | 10.8×5.0 | 12.5 |
| 30XBR-220-PB | 30 | 120 | 85/130 | 69/114 | 10.8×5.0 | 12.5 |
| 45XBR-220-PB | 45 | 120 | 70/90 | 49/82 | 10.8×5.0 | 12.5 |
| 60XBR-220-PB | 60 | 120 | 50/70 | 38/64 | 10.8×5.0 | 12.5 |
