HPC

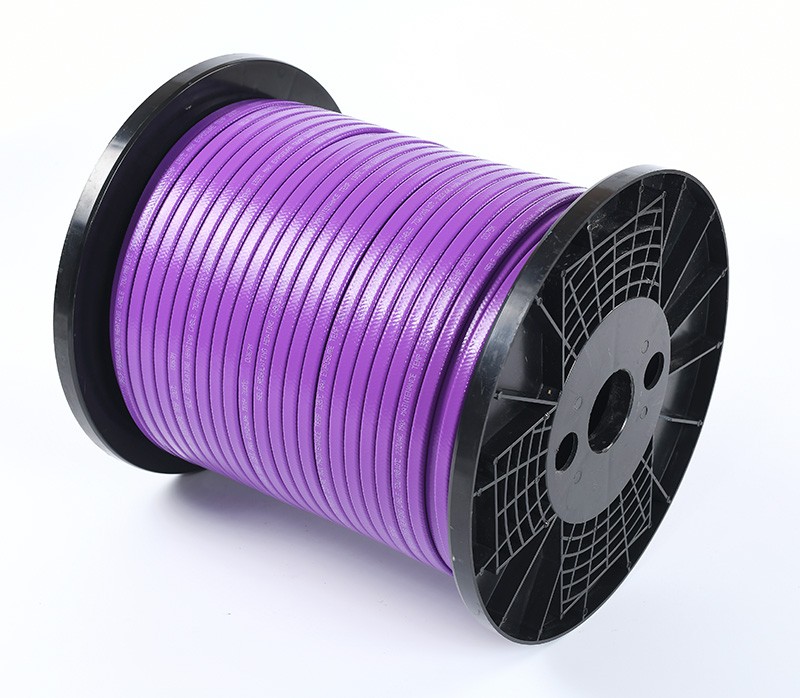

HPC self-regulating heating cables is designed for freeze protection or process temperature maintenance of pipes and vessels with very high maintain temperatures (210°C). Maximum exposure temperature is 260°C. which provides the most versatility in heat trace designs and installation.Constructed of a semi-conductive heater matrix extruded between parallel bus wires, a self-regulating cable adjusts its output to independently respond to ambient temperatures all along its length
Application
HPC series self-regulating heating cables are suitable for freeze protection and process temperature maintenance of pipes, tanks, valves, flanges, and heating requests that require high power output. Certified for use in hazardous and ordinary areas
Feature
|
|
|
Technical Data
|
|
| HPC Series | Output power @10℃ (W/m) | Max maintain temp (℃) |
Max length @10℃ 16/32/50A (m) |
Max length @0℃ 16/32/50A (m) |
Max length @-20℃ 16/32/50A (m) |
Dimension (Reference) |
Weight, 100m (Reference) |
| 15HPC2-SF | 15 | 210 | 120/169/169 | 118/169/169 | 98/169/169 | 10.8×5.0 | 12.5 |
| 30HPC2-SF | 30 | 210 | 81/118/188 | 75/118/118 | 65/118/118 | 10.8×5.0 | 12.5 |
| 45HPC2-SF | 45 | 210 | 61/100/100 | 57/100/100 | 48/98/100 | 10.8×5.0 | 12.5 |
| 60HPC2-SF | 60 | 210 | 48/87/87 | 43/87/87 | 30/82/87 | 10.8×5.0 | 12.5 |
| 75HPC2-SF | 75 | 210 | 32/71/75 | 24/54/75 | 17/39/60 | 10.8×5.0 | 12.5 |
| 90HPC2-SF | 90 | 210 | 20/40/62 | 16/30/48 | 10/22/34 | 10.8×5.0 | 12.5 |
