Maintain temperature: 0~600℃
Temperature resistance: 600~800℃
Insulating material: magnesium oxide

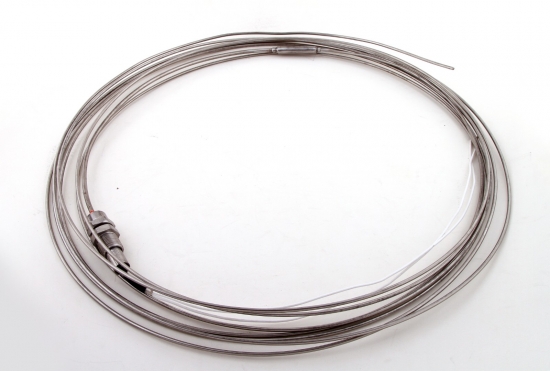

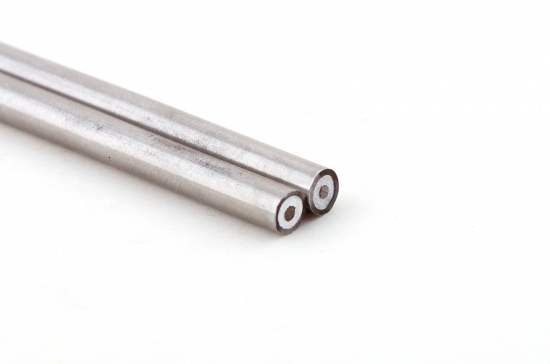

MI cables are manufactured using a special production process using single or multiple alloy electric heating wires as the heating source, high-purity, high-temperature, fused crystallized magnesium oxide as the heat-conducting insulator, and seamless continuous stainless steel or copper tubes as the sheath. In places with strong corrosive effects, PE or low-smoke halogen-free jackets can be added.
Product Description：Floor Heating membrane UM505 Material：polyethylene(PE)film top; polypropylene (PP) nonwoven bottom Roll Size：1mx20m,1mx10m,1mx5m Weight：1000g/sqm Thickness：5.6mm Film thick:0.45mm Wire cable diameter：3.6-4.2mm Installation Temperature：-10℃to 40℃, but limited by tile adhesive specification Storage Temperature：Max. 45℃ Melting：160℃ Steam Resistance：160m Equivalent air layer Air gap volume：2.8 litre/m2 Filling volume of the studs：2.3 litre/m2 Distance of the studs：4.0 mm Crack bridging：0.32mm Tensile Strength：73N/cm Waterpoof：yes Packing：wrapped in plastic film Color：Red, Orange, Yellow, Blue etc Estimation of power may achieve from different cable distribution: @64mm spacing 214W/m2 @96mm spacing 142W/m2 @128mm spacing 100W/m2 CAD Drawing:
Learn More
LSR self-regulating heating cables provide the most versatility in heat trace designs and applications. This product has been used for over 1000,000 meters in our company’s key partners, PetroChina, CNOOC,Sinopec,China Aerospace,Wanhua Chemical and other global Fortune 500 companies.
Learn More
MSR kit easily prevents damage and leakage caused by frost and eliminates the inconvenience from iced water.
Learn More
T-cable floor warming cable brings warm and comfortable feeling to people in cold season, using a proven technique which is energy-saving, safe and reliable.
Learn More
SSR self-regulating heating cables provide the most versatility in heat trace designs and applications.
Learn More
PSR self-regulating heating cables provide the most versatility in heat trace designs and applications.
