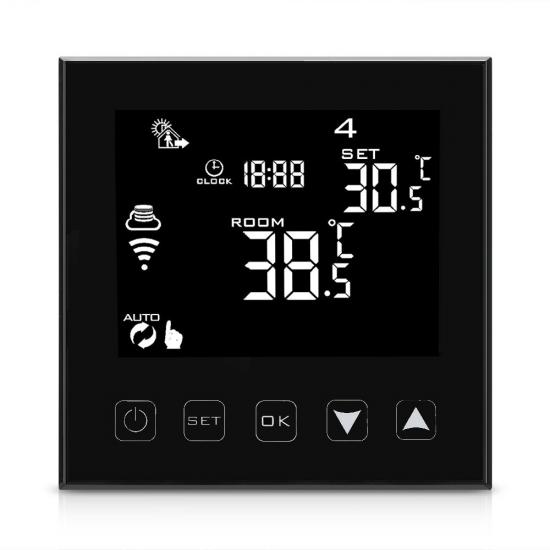

HY603 Smart Programmable Wireless Temperature Controller Thermostat

Wifi Thermostat

HY603 Smart Programmable Wireless Temperature Controller Thermostat

Inquire Now

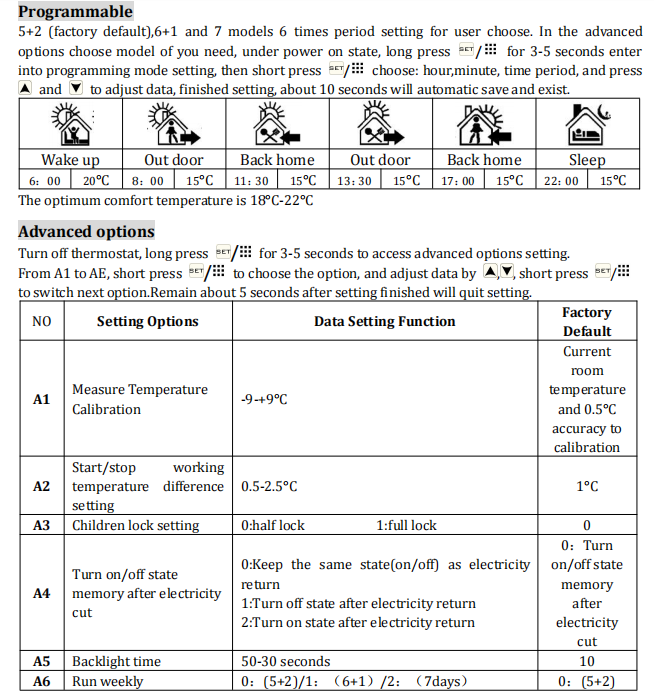

 Heating Thermostat User Manual

Many thanks for your selection of our products and services, and also for your trust and support to us.


Features

Appearance
(1) Standard total Size is 86*86mm

(2) Touch buttons to make simple operation

(3) The visible thickness above the wall is only 15mm86mm

(4) hidden box and 60mm European box

(5) Display size : 64*64mm

(6) Color:white,black


Functions

(A) Including built-in sensor and external sensor

(B) 0.5°C accuracy keeps temperature within the level you set.
(C) Children lock to prevent misoperation by children
(D) Data memory when power is off.
(E) Holiday mode make you enjoy more comfortable temperature in holiday

(F) The temperature of external sensor can be checked


Product Specifications
☆ Power: 90-240Vac 50/60HZ
☆ Range of temperature display: 0~40°C
☆ Max. control accuracy: 0.5°C
☆ Probe sensor: NTC(10k)1%
☆ Contact capacity: 3A/250V(WW);16A/250V(WE) ☆ Output: Switch relay
☆ Limit temperature range: 0~70°C
☆ Insulating condition: Normal environment
☆ Default setting temperature range：5~35°C

☆ Size(mm)：86*86*27

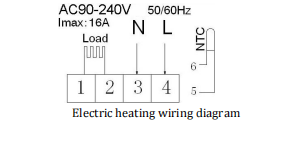

Before wiring and installation
1.Read these instructions carefully. Failure to follow them could damage the product or cause a
hazardous condition.
2.Check the ratings given in the instructions and on the product to make sure the produce is
suitable for your application.
3.Installer must be a trained experienced service technician.

4.After installation is complete.check out produce operation as provided in these instructions


CAUTION
Electrical shock or equipment Damage Hazard. or short equipment circuitry.

Disconnect power supply before installation

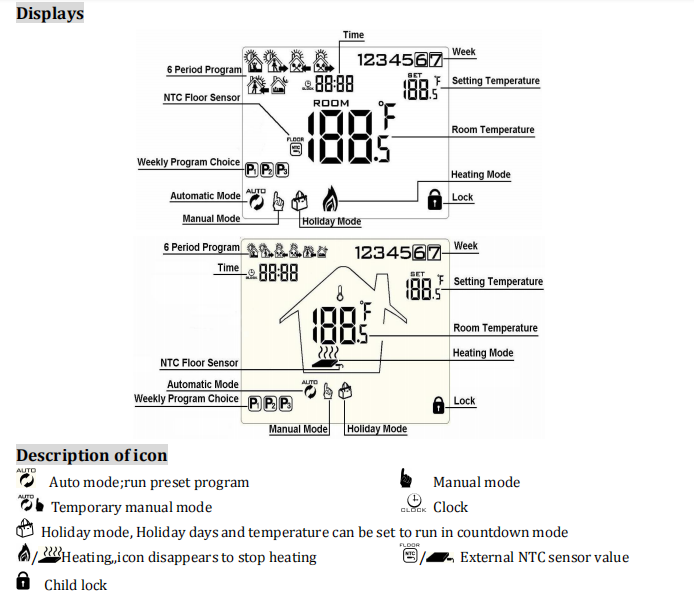

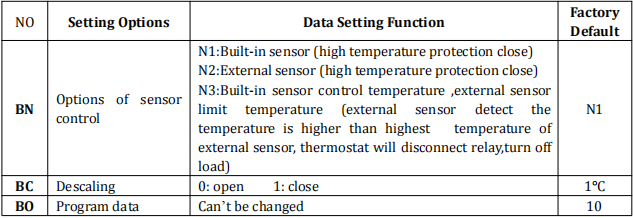

Sensor fault display:please choose correct working way of built-in and external sensor, if choose

wrongly or sensor fault (breakdown), “E1” or “E2” will be displayed on the screen. Thermostat will
stop heating until the fault is eliminated
Warranty：
We offer the warranty of 18 months, from the sales day. The products of our company can have
lifetime warranty ,if it is not the quality problems, or beyond the warranty period, we will charge for
the after-sale service
